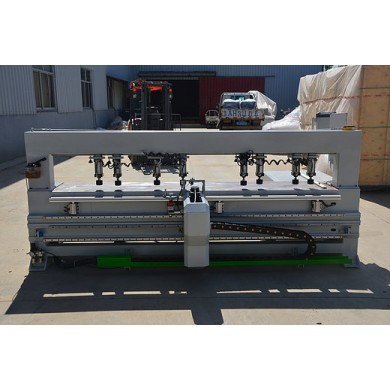

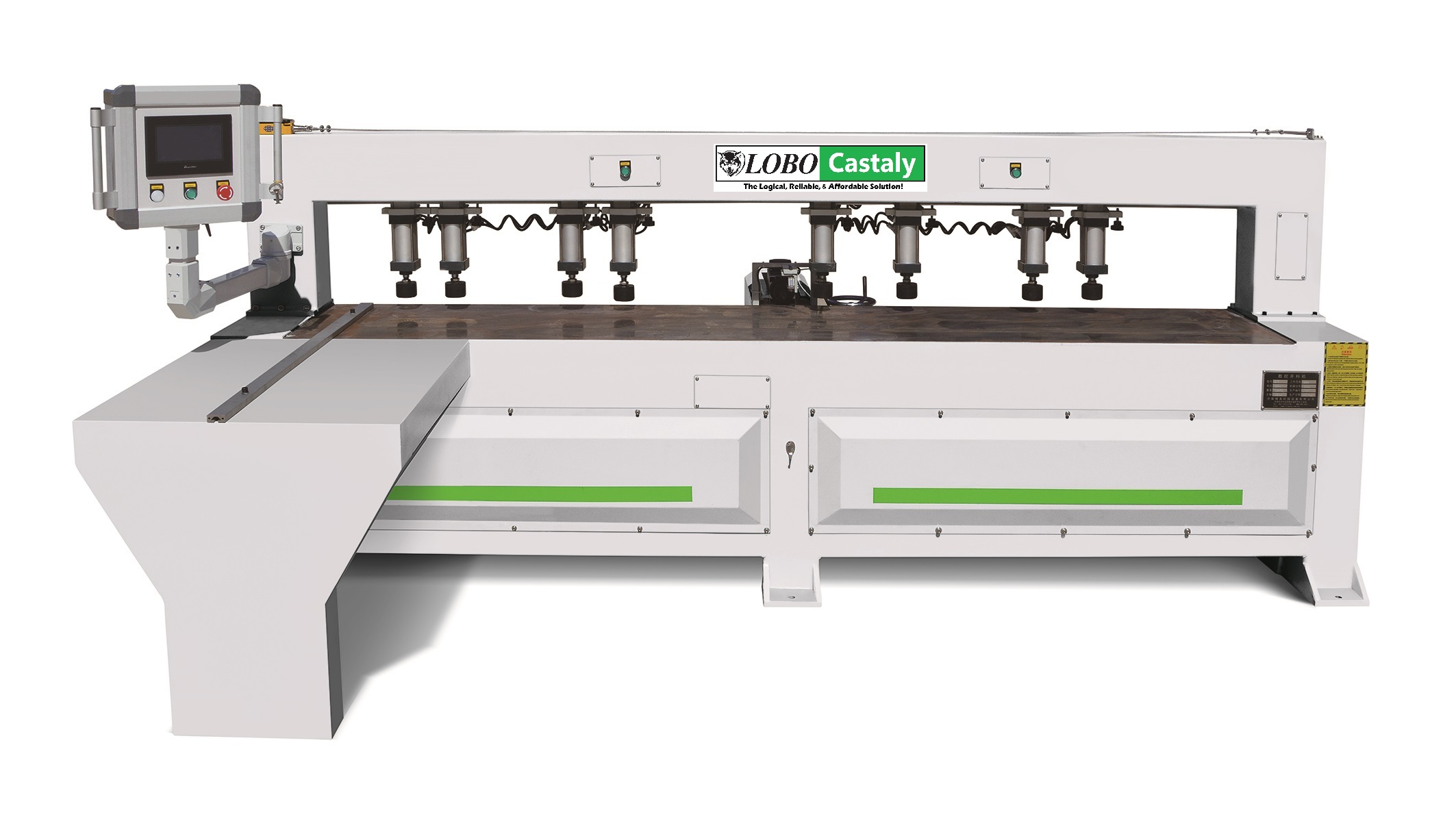

CNC Side Boring / Drilling Machine (1S)
BR-9622CNC-1S- Description
- Product Details
- Product PDF sheet
BR-9622CNC -1S Description
· All X, Y, Z Axis “servo motor” driving system: All axis is driven by brush-less type, high torque AC servo motors.

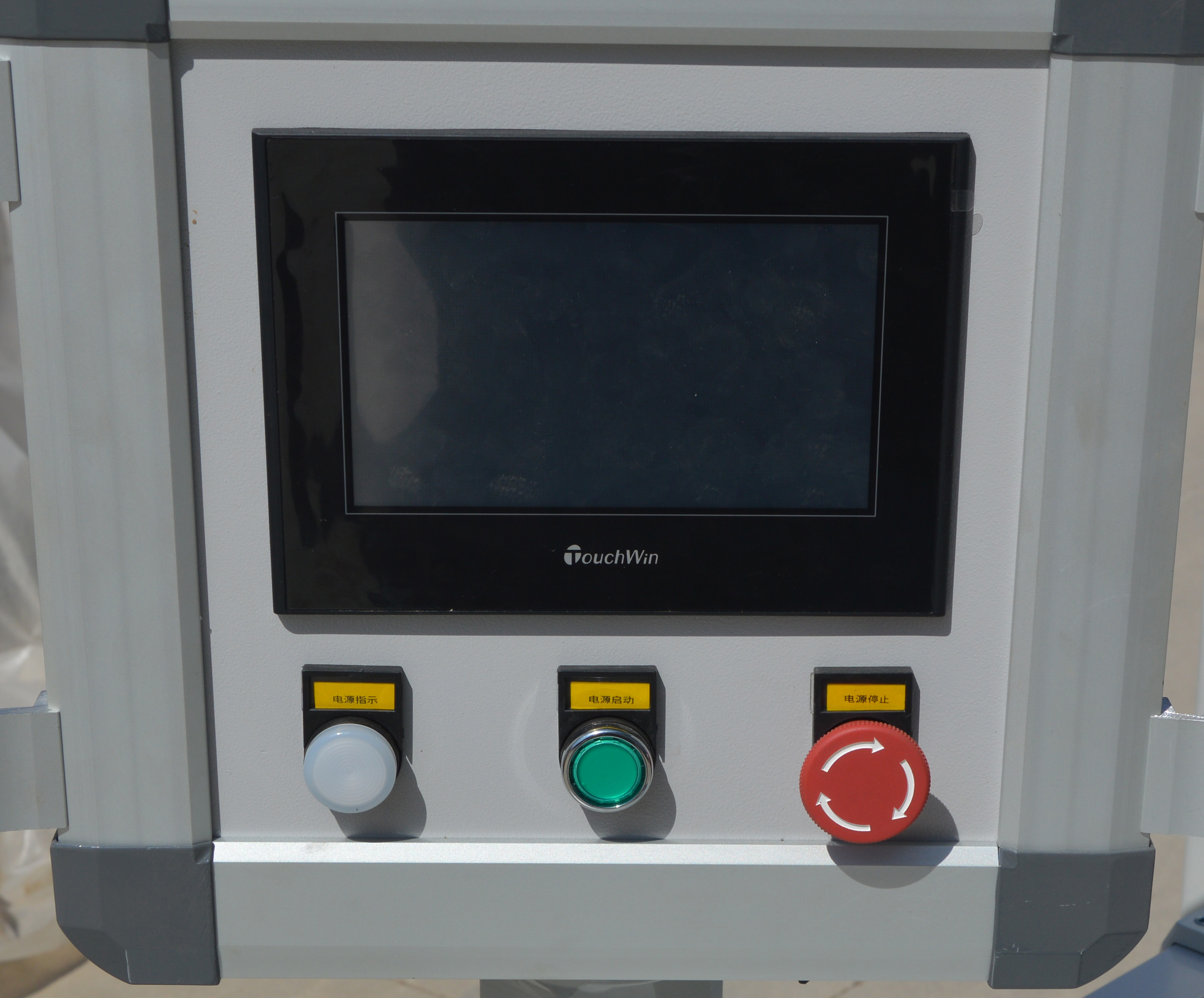

· Touch Screen for easy inputting the drilling projects
· Automatic drilling cycle with pneumatic hold down cylinder for mass production
· DSP NC controller is set up to accept standard G-code programming formats along with on board conversational applications.
· The rigid steel frame construction has been stressed relieved prior to finish machining to provide repeatability and accuracy.
· Linear guides and sliding blocks are prismatic pre-load with recirculation bearings to ensure maximum rapid traverse and precision.
· The X & Y axis are equipped with a precision rack & pinion driving system.

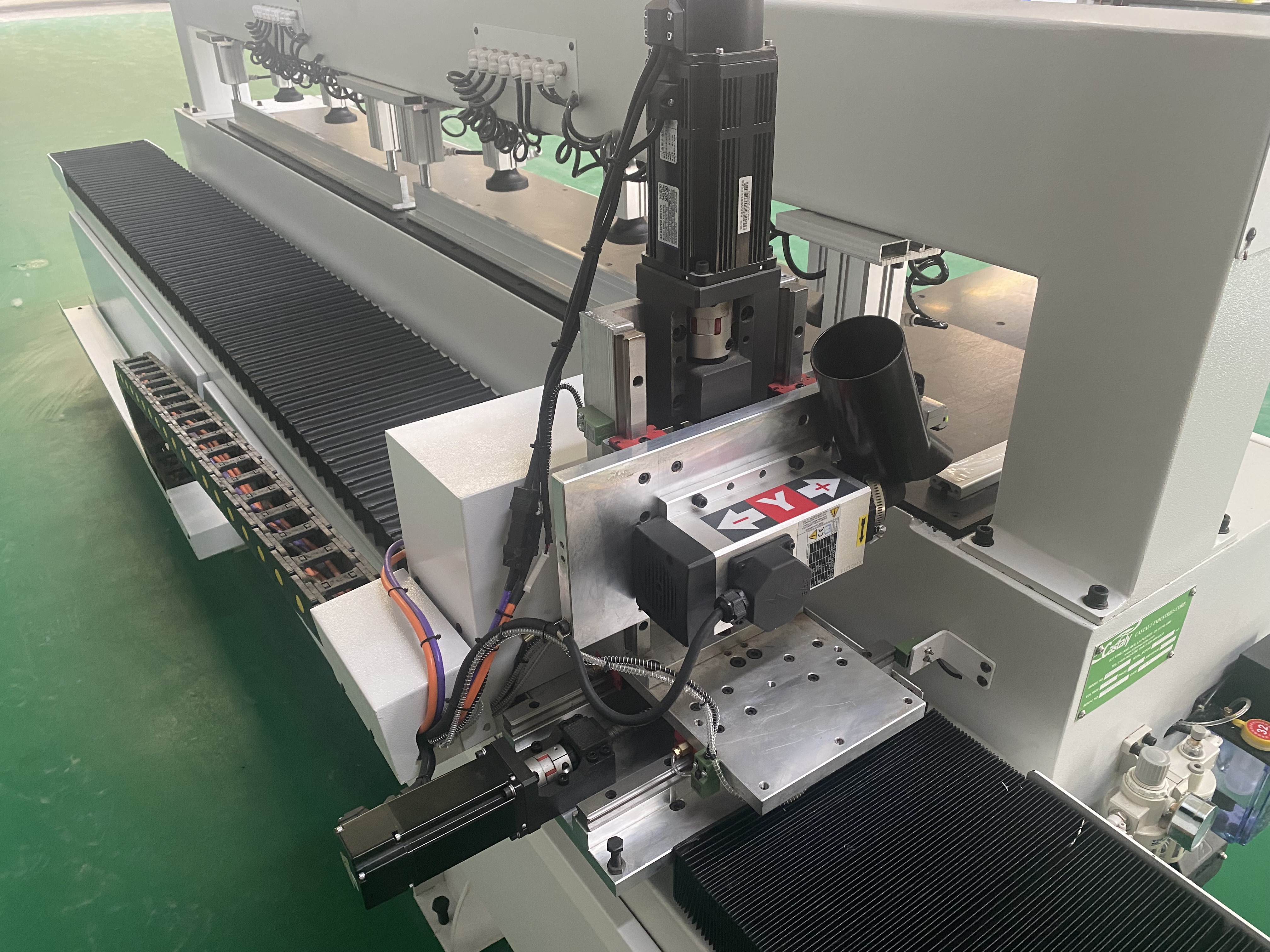

· The Z axis utilizes a ball screw assembly complete with the pre-load and ground screw for long life and optimum accuracy.
BR-9622CNC -1S Product Details
|
1 |
Control system |
DSP Control system |
|
2 |
Spindle |
3 HP (2.2 KW) air cooling, speed 6,000-18,000 rpm/min |
|
3 |
Lathe frame |
Heavy duty metal welding with quenching process |
|
4 |
Table |
19” PVC Table with Air Cylinder Press, plus 42” Extend table |
|
5 |
Driving system |
AC servo 750 W drive & motor |
|
6 |
X, Y Axis structure |
Taiwan TBI or HIWIN Helical rack and pinion drive |
|
7 |
Z Axis Structure |
Taiwan TBI or HIWIN ball screw |
|
8 |
X Y Z Axis Square rails |
Taiwan HIWIN brand linear square rails |
|
9 |
Inverter |
3 KW Inverter |
|
10 |
Electric parts |
France Schneider |
|
11 |
Machine Cable |
German Siemens OEM factory cable |
|
12 |
Oil lubrication |
Manual control with filter |
|
13 |
Machine working size |
BR-9622CNC-1S; X*96’, Y*2’, Z*2’, BR-12033CNC-1S; X*120’, Y*3.’, Z*3’’ |
|
14 |
Machine Size (L x W x H) |
BR-9622CNC-1S; 110” x 55” x 63” |
|
15 |
Machine Max. travel speed |
1,380 IPM |
|
16 |
Machine Max. working speed |
393 IPM |
|
17 |
Machine power |
3 PH ,220 V, |
|
18 |
Machine weight |
BR-9602CNC-1S; 1,720 lbs |
|
19 |
Support Dictate Format |
*.plt, *.dst, *.dxf, *.bmp, *.dwg, *uoo |
|
20 |
Control switch |
German Moeller |
|
21 |
CAD / CAM Drawing Software |
Option |
