Vertical CNC Multiple Spindles Machine Center

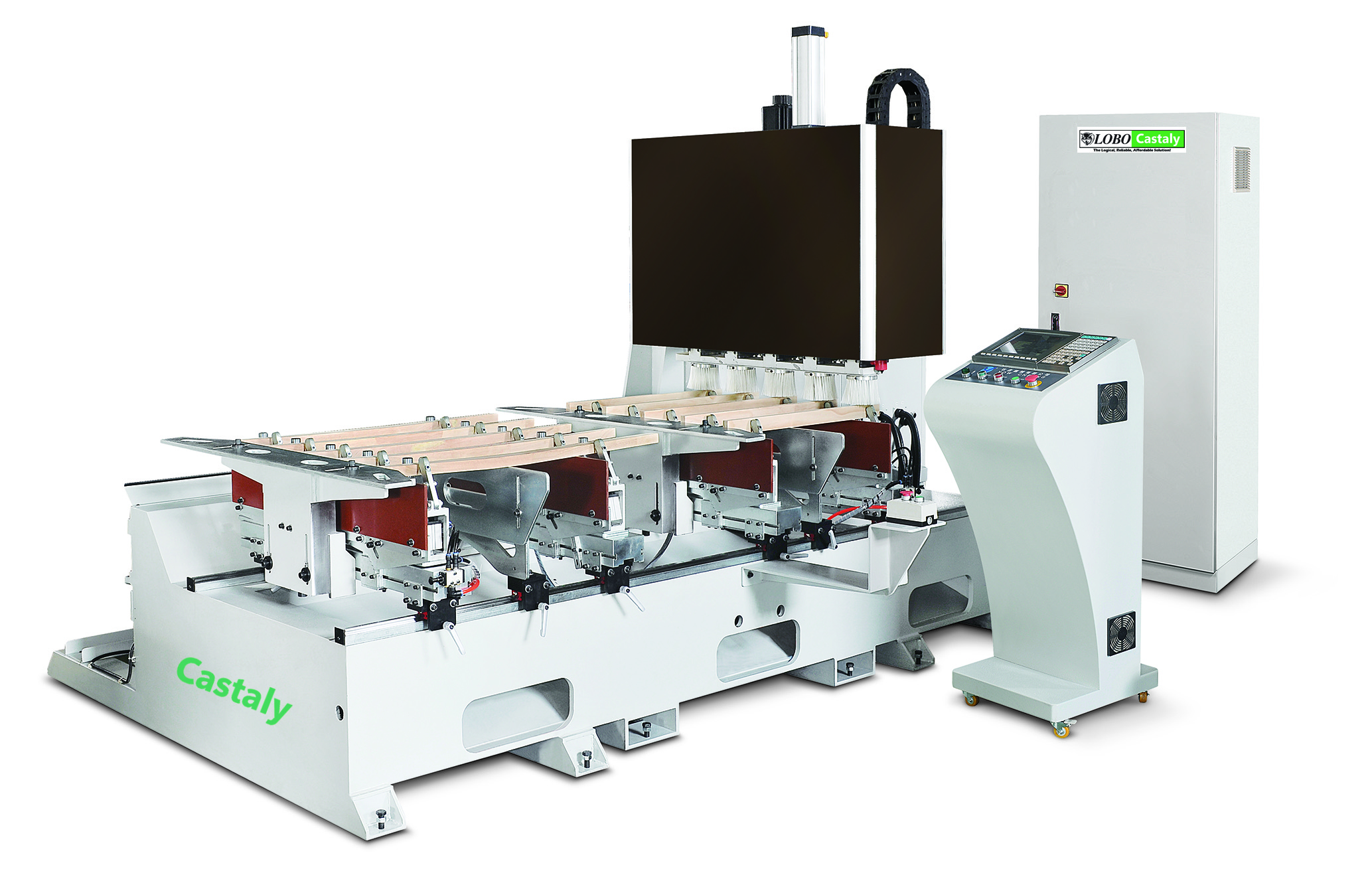

Vertical CNC Multiple Spindles Machine Center Description

• CNC-83-DU CNC Multi-Spindles machine center is ideal for high-speed slot milling on straight and curved wood.
• This machine is designed with 3 spindles, allowing for machining 3 pieces of wood simultaneously.
• Equipped with an advanced CNC controller, the machine makes slot milling operations more flexible and easier.

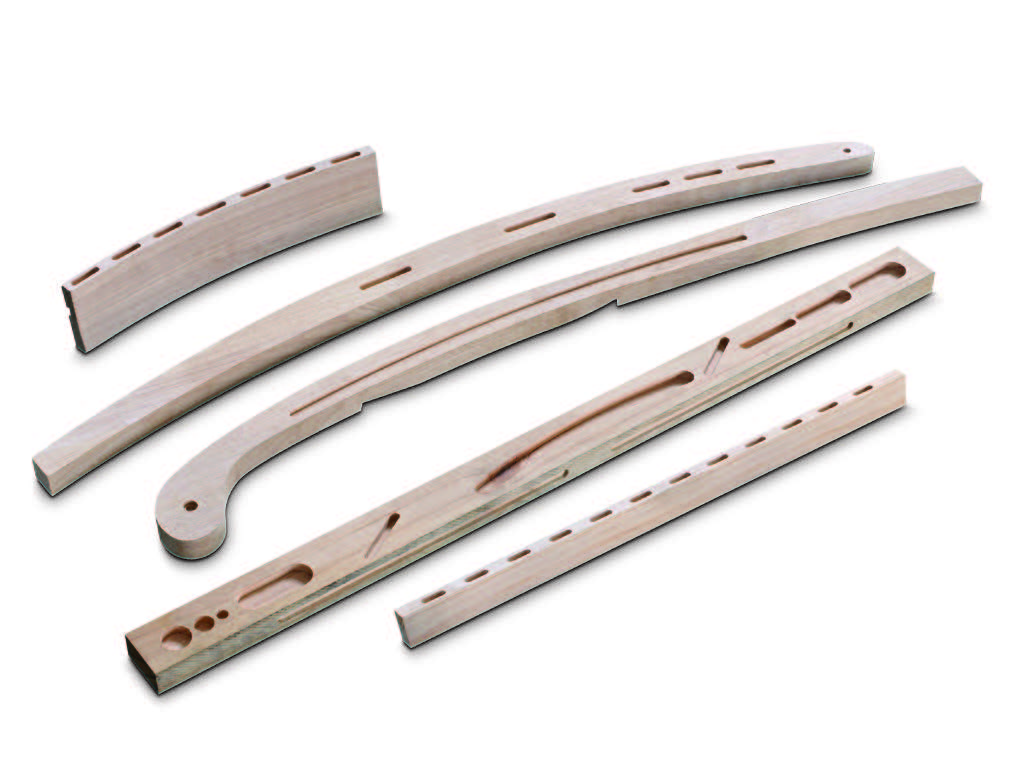

• Suitable for high-speed slot milling for kitchen cabinet frames, chair, and table legs, etc.
• Applicable for straight and curved wood.
• 3 Spindles are simultaneously controlled. Each spindle is controlled through a frequency inverter.
• Powerful CNC controller permits slot milling to be performed with ease and helps to dramatically increase throughput.
• X, Y, Z-axis movements are driven by servo motors with high speed and high positioning accuracy.
• X, Y, Z-axis are transmitted through ball screws.
• X, Y, Z-axis sideways and clamping mechanism slideways are fitted with linear motion guides.
• (Optional). With the Quick-Change Spindle, no secondary machining is required. Two slot widths can be machined at a time. This not only dramatically shortens the workpiece handling time by the operator but also upgrades working efficiency and market competitiveness.

Vertical CNC Multiple Spindles Machine Center Product Details

• Cutting capacity
• Maximum workpiece size (One Zone) 83-3/8” Length x 1, 3-3/8” Width
• Maximum workpiece size (Two Zones) 47-1/4” Length x 2, 3-3/8” Width
• Maximum working height 4”

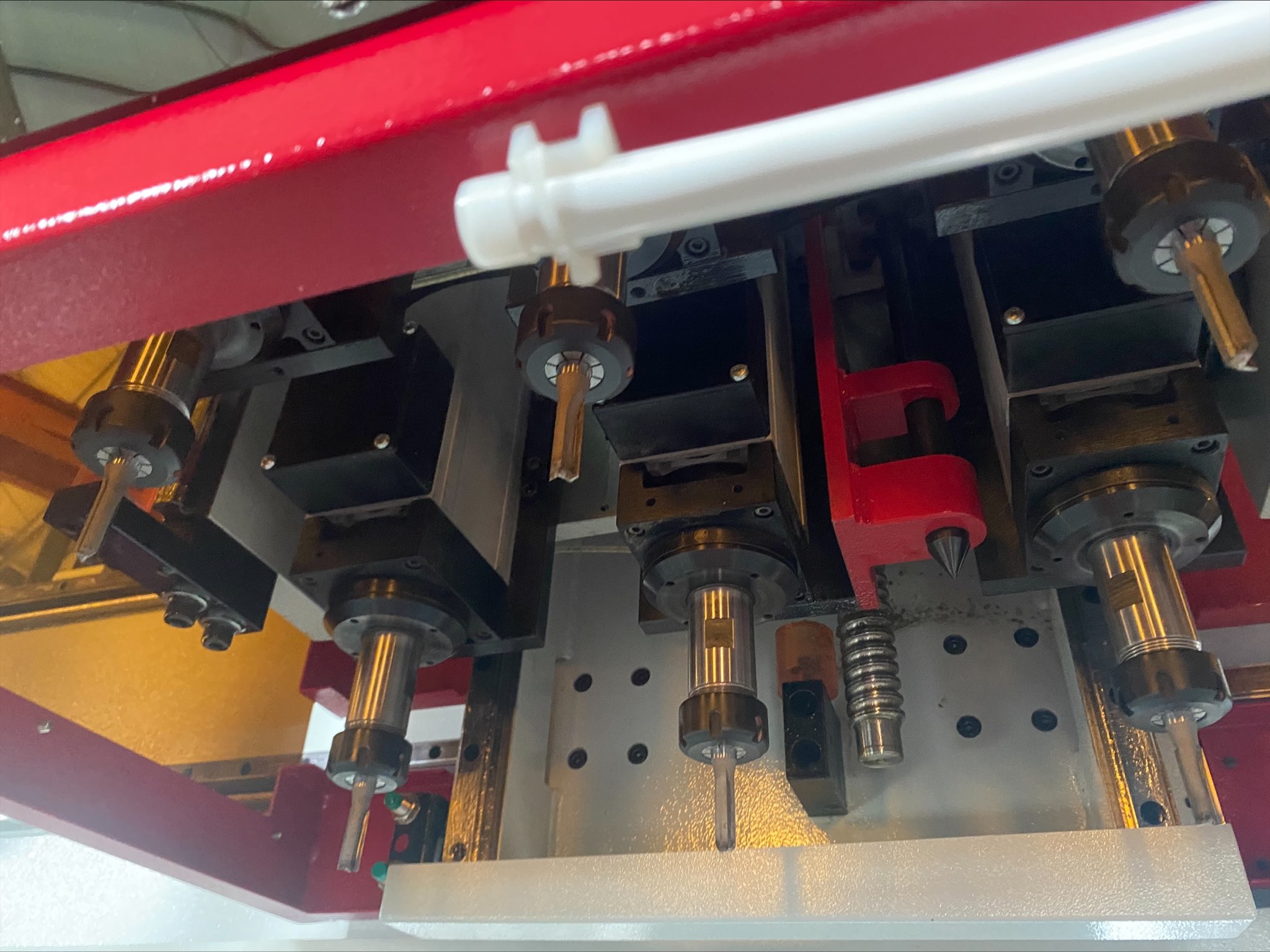

• Number of spindles 3 spindles
• Spindle speed 16,000 R.P.M.
• Spindle motor 3 HP x 3 units
• X-axis 1.5 kw x 1 unit
• Y-axis 1 kw x 1 unit
• Z-axis 1 kw x 1 unit
• Total horsepower 10.25 kw (13.7 HP)
• Working air pressure 6 kg/cm2

CNC-83 & 105 & 165DU Vertical CNC Machine Center
