CNC Auto Feed Samll Parts Lathe

Features

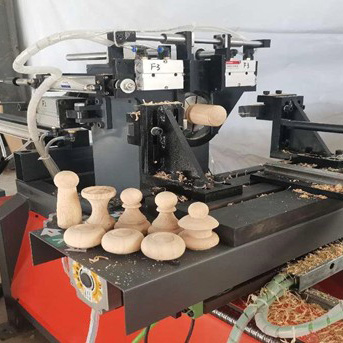

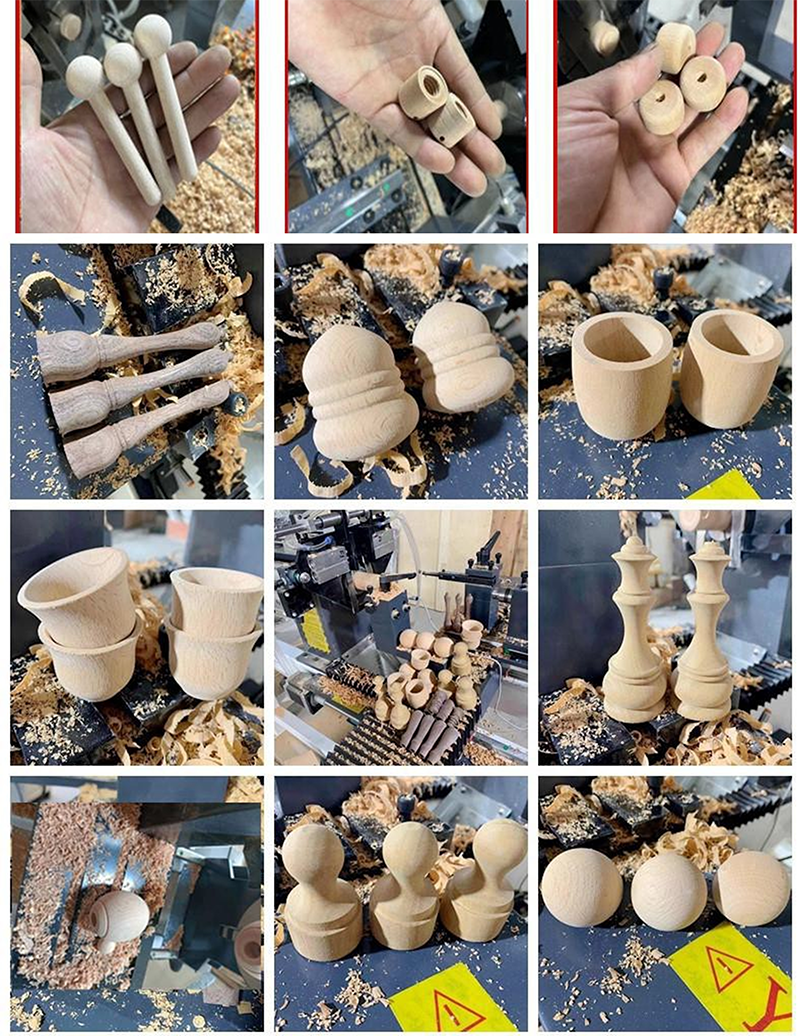

•       Suitable for mass production, such as all kinds of wooden small sizes parts, Bead, barrel, gourd pendant, hoist pieces, wood rhinoceros-horn, cup, bowl, whip, cigarette holder, ashtray, scroll painting head, wooden handle etc

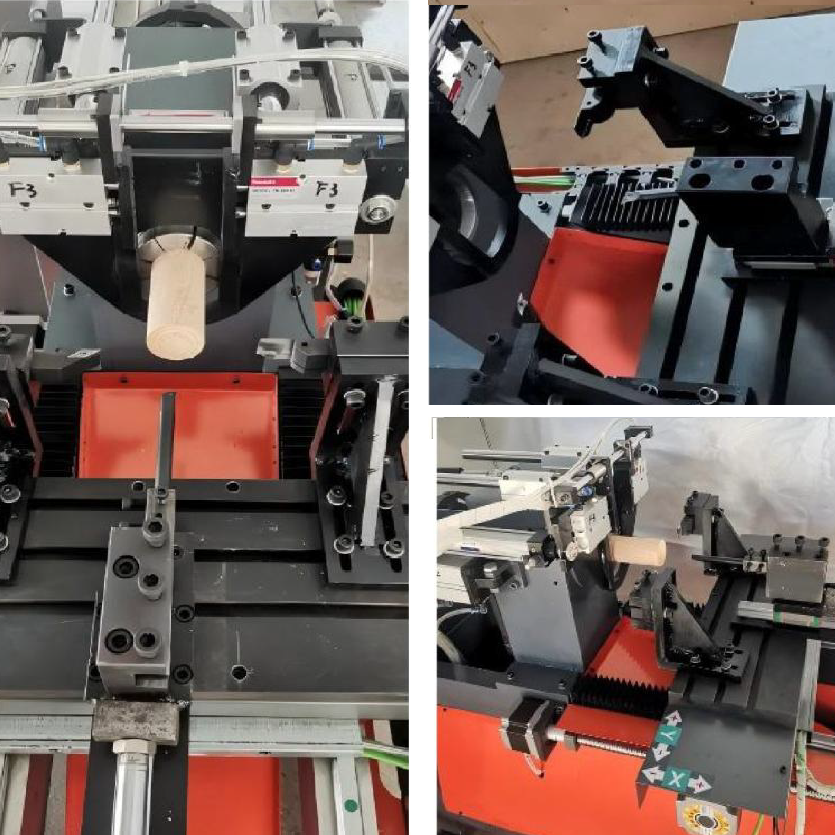

•       Automatic feeding, knives to complete multiple workpieces, processing speed, high validity.

•       The machine adopts welding structures, high temperature annealing and vibration stress treatment, weighs 450kg, and occupies a small area.

•       Professional for small craft wood processing.

•       Easy to learn control panel system, with USB interface, no computer can be easily operated

•       Adopt high precision ball screw and rhomboid guide rail, high precision and long life.

•       Compatible with a variety of CAD/CAM design software, such as Type3, ArtCam, etc.

•       The speed can be adjusted by the frequency converter, or the speed can be seen on the panel of the control cabinet.

Specification

•    Maximum processing length: 10” (250 mm)

•    Maximum processing diameter: 2-1/4” (58 mm)

•    Through hole diameter: 2-3/8” (60 mm)

•    Spindle motor: 2 HP (1,5 KW) 3 PH brake motor.

•    Driver: YHKO 2D68

•    Working voltage: 220 V 3 PH

•    Horizontal axis transmission: 2010 ball screw.

•    Longitudinal axis transmission: 2010 ball screw.

•    Horizontal axis drive: 86 stepper motor.

•    Vertical axis drive: 86 stepper motor

•    Guide rail: 20 square rails

•    System: Offline G Code Controller

•    Software: Complimentary path generation software.

•    Software recognition format: PNG

•    industrial control computer host

•    Machine size: 95” L x 48” W x 51” H

•    Machine weighs 4990 lbs

CL-210CNC-AF  2" x 10" CNC Auto Feed Samll Parts Lathe
