CNC Oscillating Knife Cutting Machine
- Description
- Product Details
Features:
• Fixed Table or Auto Feeding Table

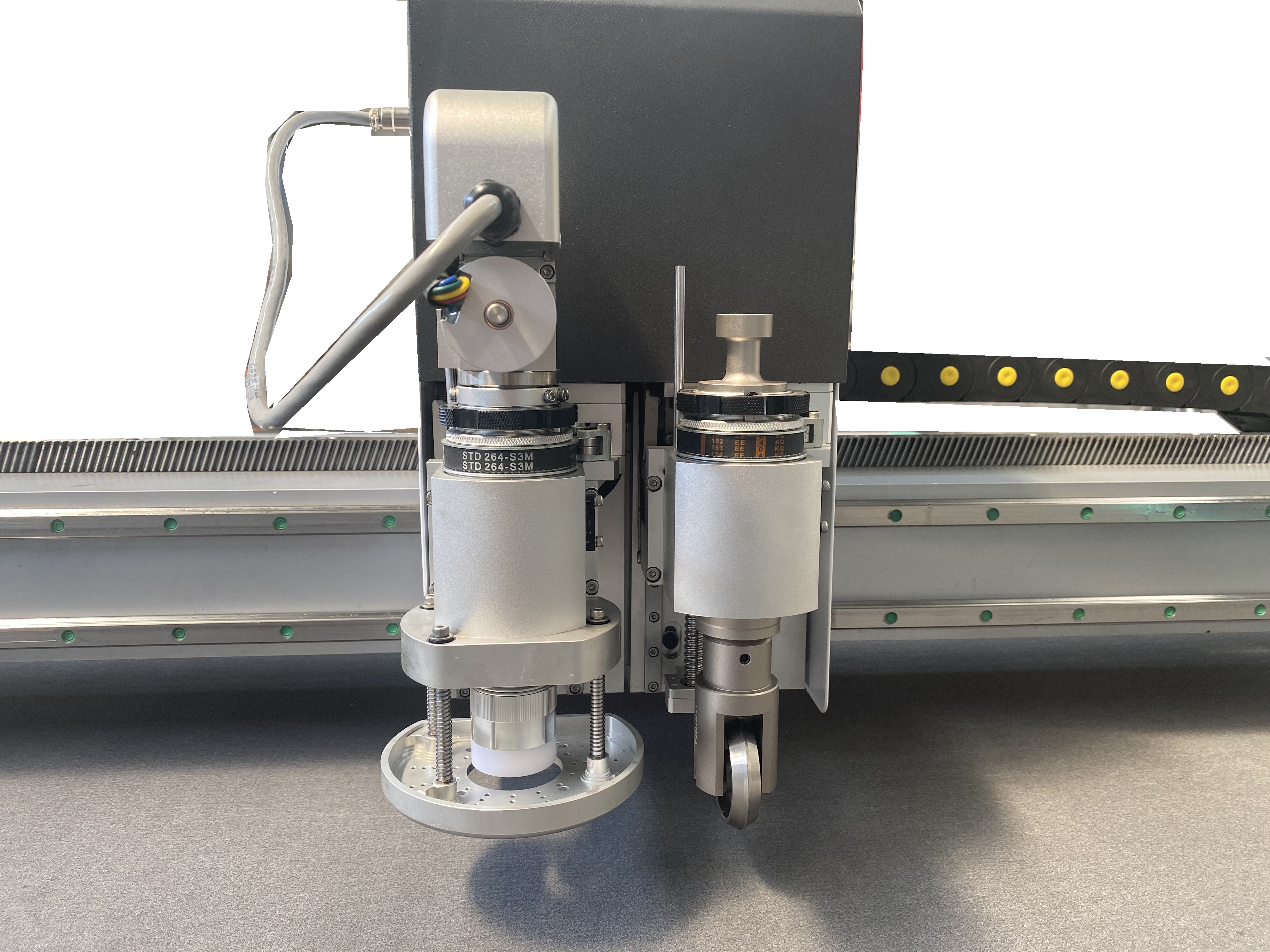

• Two knife holders of oscillating knife tool, creasing wheel and marking pen

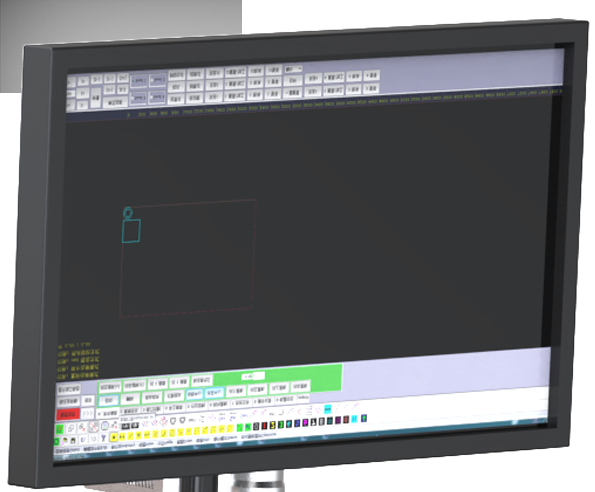

• Driving Software
• Panasonic motors and drivers
• Red position safe operation system
• Platform leveling device
• Taiwan PMI linear rail
• Aviation aluminum absorbing platform
• Machine 220V 50 / 60 Hz single phase, rated power 3 kw
• 7.5kw vacuum pump 220V, 3 phase
Specification:
|
Tool configuration |
Multiple cutting knives |
|
|
Safety device |
Using infrared sensors, responsive, safe and reliable. |
|
|
Transnational velocity |
800-1300mm/s |
|
|
Cutting speed |
200-1300mm/s (according to different cutting materials) |
|
|
Cutting thickness |
≤100mm (according to different cutting materials) |
|
|
Cutting materials |
Foam, EVA, EPE, Foam, Carton, PP board and white card paper, cardboard, paper, PVC, film, sticker, etc. The maximum cutting depth is up to 100mm, depending on material density. |
|
|
Repeated accuracy |
≤0.1mm |
|
|
Capacity |
2GB |
|
|
Transmission system |
Digital servo motor, linear guide, USA Carlisle |
|
|
Instruction system |
DXF、PLT、POF、GDF、AI、PDF and etc |
|
|
Voltage |
220V/380V/415V |
|
|
Main Parts |
Servo motor and driver: |
|
|
Controller and software: |
||
|
|
