Oscillate CNC router (with oscillating knife)

OSCILLATE CNC

$47,500.00

Model: OSCILLATE-408 / OSCILLATE-510 CNC ROUTER
Prices indicated are FOB Los Angeles CA. US. Tooling, rigging, freight & sales taxes are not included
Payment terms: 50% deposit , 50% balance before ship
Warranty: 1 year
Delivery time: xx days after deposit
Training, installation, tooling & rigging are option. Customer is responsible for local regulations and utilities connecting

1. Machine Gantry X Axis square rails Parallel vertical accuracy 0.001" (0.03mm)
2. Y Axis square rails Parallel vertical accuracy 0.001" (0.03mm)
3. Z Axis ball screw Parallel vertical accuracy 0.001" (0.03mm)
4. Machine Re-position accuracy 0.001" (0.02mm)
5. Machine working accuracy 0.002" (0.05mm)
6. Grating ruler travel accuracy 0.002" (0.05mm)

All "servo motor" driving system: All axis are driven by brush-less type, high torque AC servo motors.
With Oscillating knife head to work on most of the sharp or 90 degree projects
DSP CNC controller is setup to accept standard G-code programming formats along with on board conversational applications.
Optional CAD/CAM system can create and edit part programs then send to machine for easy cutting. DXF files can be imported, modified and edited from here to create a G-code.
Moving gantry construction for space saving.
The rigid steel frame construction has been stress relieved prior to finish machining to provide repeat-ability and accuracy.
The HSD spindle uses CP4 DB bearings with a dust-free design. The heavy-duty fan cooling system forces air through the spindle to assist in trouble-free operation.
Automatic frequency brake for the spindle allows rapid deceleration resulting in faster tool changes.
Linear guides and sliding blocks are prismatic pre-loaded with recirculation bearings to ensure maximum rapid traverse and precision.
The X & Y axis are equipped with a precision rack & pinion driving system.
The Z axis utilizes a ball screw assembly complete with the pre-loaded and ground screw for long life and optimum accuracy.
Special design 4 zone vacuum table surface for powerful hold down.

Applications for most materials and many industries. Some include but not limited to Rubber, Sponge, leather, PU, PVC, paper, plastic, cloth, carpet, acrylic, ABS and many more.

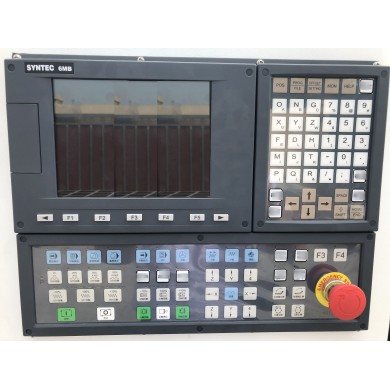

Control system: SYNTEC control

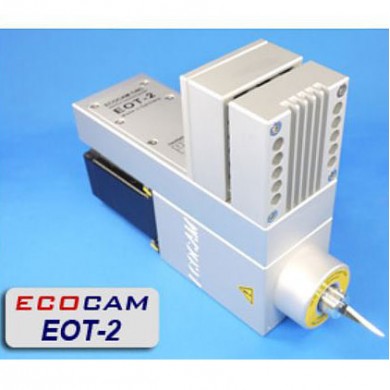

Oscillating knife head: German ECOCAM Oscillating Knife Cutting Head. Oscillating rate 13,000 per minute
Spindle: 12,8 HP (9.0KW) air cooling, speed 6,000-24,000 rpm/min
Lathe frame: Heavy duty metal welding
Table: 6 zone Vacuum table
Driving system: Japan Yaskawa servo drive & motor
X, Y Axis structure: Helical rack and pinion drive
Z Axis Structure: Taiwan TBI or HIWIN ball screw
X Y Z Axis Square rails: Taiwan HIWIN brand linear square rails
Inverter: 7.5 KW Inverter
Electric parts: France Schneider
Limited switch: Japan Omron
Machine Cable: German Siemens OEM factory cable
Oil lubrication: Hand control with Aluminum oil pipe
Machine working size: OSCILLATE-408; X*51’’, Y*98’’, Z*7-3/4’’ / OSCILLATE-510; X*63’’, Y*126’’, Z*7-3/4’’
Machine Size (L x W x H): OSCILLATE-408; 122” x 87” x 71” /OSCILLATE-510; 149” x 99” x 71”
Machine Max. travel speed: 1,400 IPM
Machine Max. working speed: 1,000 IPM
Machine power: 3 PH ,220 V ,38 AMP
Machine net weight: OSCILLATE-408; 3,510 lbs / OSCILLATE-510; 3,960 lbs
Support Dictate Format: *.dxf,
Control switch: German Moeller
DC electrical source: Taiwan MEAN WELL
CCD camera system: Option; Charge-Coupled Devices (CCD); add $2,890.00
Vacuum Pump: Option
CAD / CAM Drawing Software: Option
