ARES-4AX 4 Axes CNC Door Processing Machine Center

ARES- 4AX Description

Distinctive Design for Door Pre-Hang Processing

• Automatic Feed Through (Options with Auto Loading and Out-Feeding)
• All the 5-side Project Processing

  Top / Up Face: Door Lite Cutout, Cylindrical Lock / Dead Bolt Prep., Mortise Lock Face Prep. Hinge & lock edge: 3 Degrees

  bevels, Lock / Dead Bolt Prep (Cylindrical), Mortise Lock, Latch Face Milling, Latch / Lock Bore Drilling, Flush Butt / Mortise

  Hidden Hinges Face Milling, Screw Hole Drilling, Ball / Roller Catch, Weather Strip.

 Top Castaly's Woodworking CNC Machine are Perfect for:

❖  Three-dimensional wood processing

❖  Cupboard doors

❖  Wooden doors

❖  Window processing

❖  Video game cabinets

❖  Door Lite Cutting

❖  Steel Door processing

Features

❖  DSP CNC controller is set up to accept standard G-code programming formats along with on board conversational applications.

❖  An optional CAD/CAM system can create and edit programs then be sent to machine for easy cutting. DXF files can be imported, modified, and edited from here to create G-code.

❖  Horizontal and vertical spindle for top and side stock processing

❖  Machine designed ready for 3-D cutting usage and superior performance.

❖  Moving gantry construction for space saving.

❖  The rigid steel frame construction has been stressed relieved prior to finish machining to provide repeatability and accuracy.

❖  Automatic frequency brake for the spindle allows rapid deceleration resulting in faster tool changes.

❖  Linear guides and sliding blocks are prismatic pre-loaded with recirculation bearings to ensure maximum rapid traverse and precision.

❖ The X & Y axis is equipped with a precision rack & pinion driving system. The Z axis utilizes a ball screw assembly complete with the pre-loaded and ground screw for long life and optimum accuracy.

ARES- 4AX Product Details

Italy Hiteco 11 kw air cooling spindle with HSK-F63 tools,

Spindle Automatic Rotate from left to right ±90 degrees.

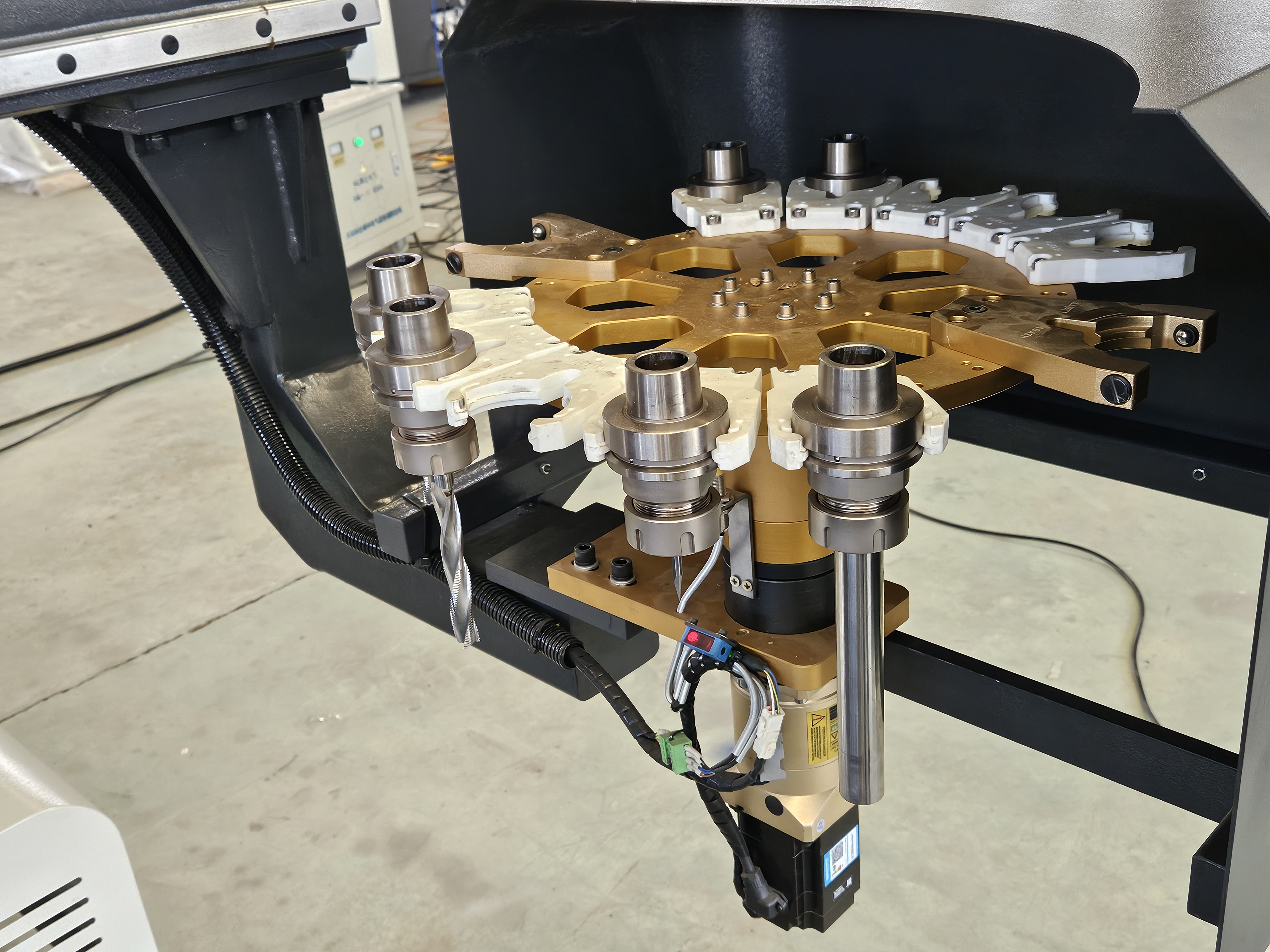

Rotary Disc type 16 tools ATC

General Spec

1.  Machine Gantry X Axis square rails Parallel vertical accuracy 0.001” (0.02mm)

2.  Y Axis square rails Parallel vertical accuracy 0.001” (0.02mm)

3.  Z Axis ball screw Parallel vertical accuracy 0.001” (0.02m)

4.  Machine Re-position accuracy 0.001” (0.02mm)

5.  Machine working accuracy 0.002” (0.5mm)

6.  Grating ruler travel accuracy 0.002” (0.05mm)

Specification

※ Working size 51” (1300 mm) Width x 98” (3000 mm) Length x 11-7/8” (300 mm) Height (Mortise lock depth Maximum 5-1/2”)

※ Custom made door vacuum table (Optional Vacuum Pump)

※ Syntec 60WA control with All-in-one PC Controller

※ 1500w servo

※ Max travel speed 200 fpm (60m/min), Max working speed 50 fpm (15m/min) (According different processing material)

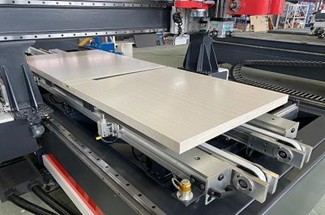

※ Professional PTP table with German SCHMALZ Vacuum pads 6pcs

※ 2M helical rack, CSK 35 Heavy duty square linear rails & Ball screw

※ Automatic control with Aluminum oil pipe Oil lubrication
