CR-DU Description

Future:

•    Machines apply for

1.  The woodworking industries: Such as Three-dimensional wave plate processing, cupboard doors, wooden doors, window processing, video game cabinets and panels, computer table and Plate furniture auxiliary processing.

2.  The advertising industry: Advertising signs, logo production, acrylic cutting, forming system module, a variety of materials advertising the production of decorative products.

3.  Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

•    Machine body, gantry and metal post were quenched to ensure long - term accuracy

•    DSP CNC controller is set up to accept standard G-code programming formats along with on board conversational applications.

•    An optional CAD/CAM system can create and edit programs then be sent to machine for easy cutting. DXF files can be imported, modified, and edited from here to create G-code.

•    Machine designed ready for 3-D cutting usage and superior performance.

•    Moving table construction for space saving.

•    The rigid steel frame construction has been stressed relieved prior to finish machining to provide repeatability and accuracy.

•    Automatic frequency brake for the spindle allows rapid deceleration resulting in faster tool changes.

•    Linear guides and sliding blocks are prismatic pre-loaded with re-circulation bearings to ensure maximum rapid traverse and precision.

•    All the X, Y & Z axis utilizes with precision ball screw assembly complete with the pre-loaded and ground screw for long life and optimum accuracy.

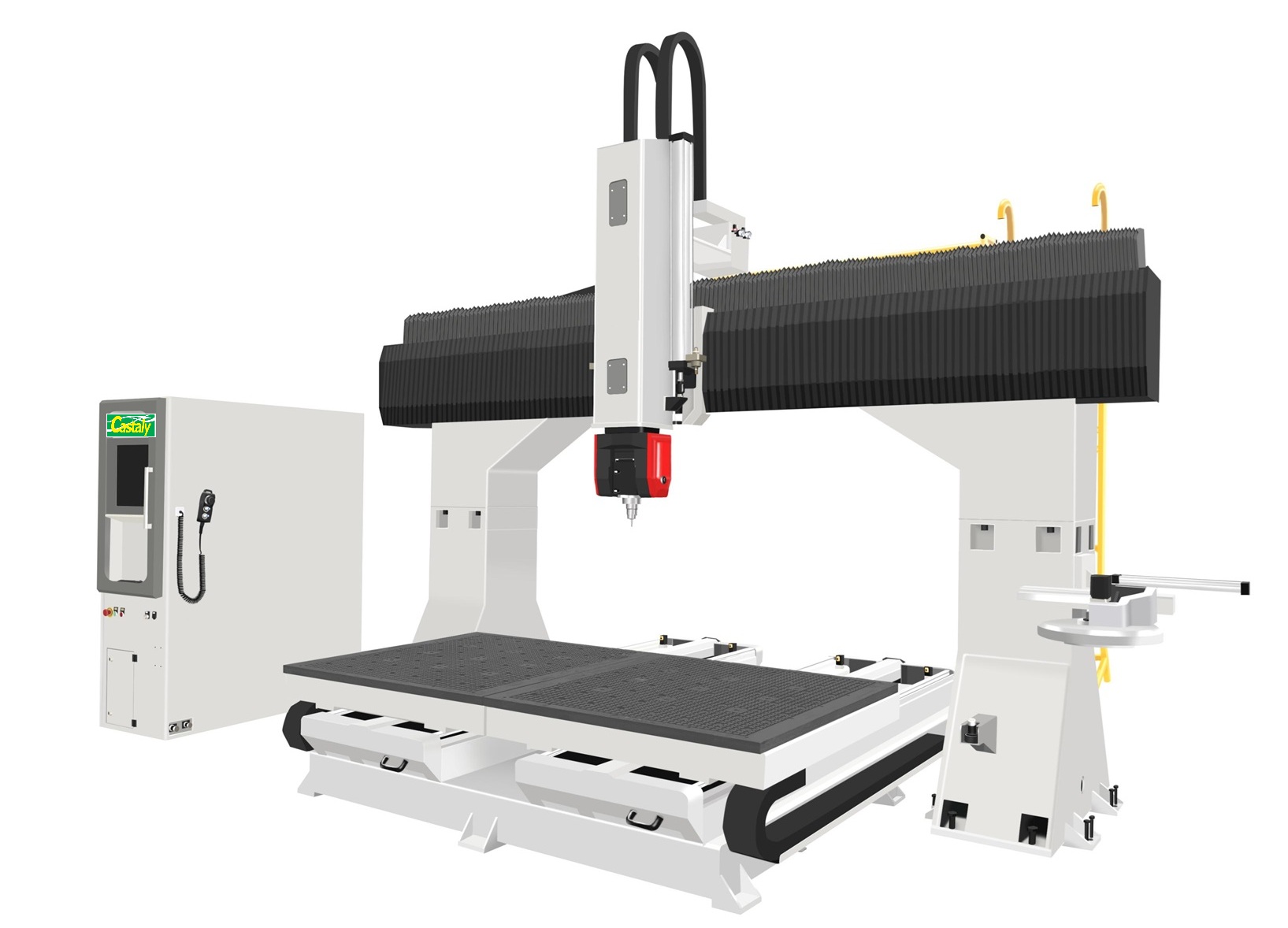

CR-DU Product Details

Specification

•    Working size (X*Y*Z Axis) 3300mm*1250mm*800mm

•    Spindle: CC Brand (4 output side 7.5kw-7.5kw-7.5kw-7.5kw) air cooling, A Axis ±110°C Axis ±360°

•    Machine body Heavy duty metal pipe welding

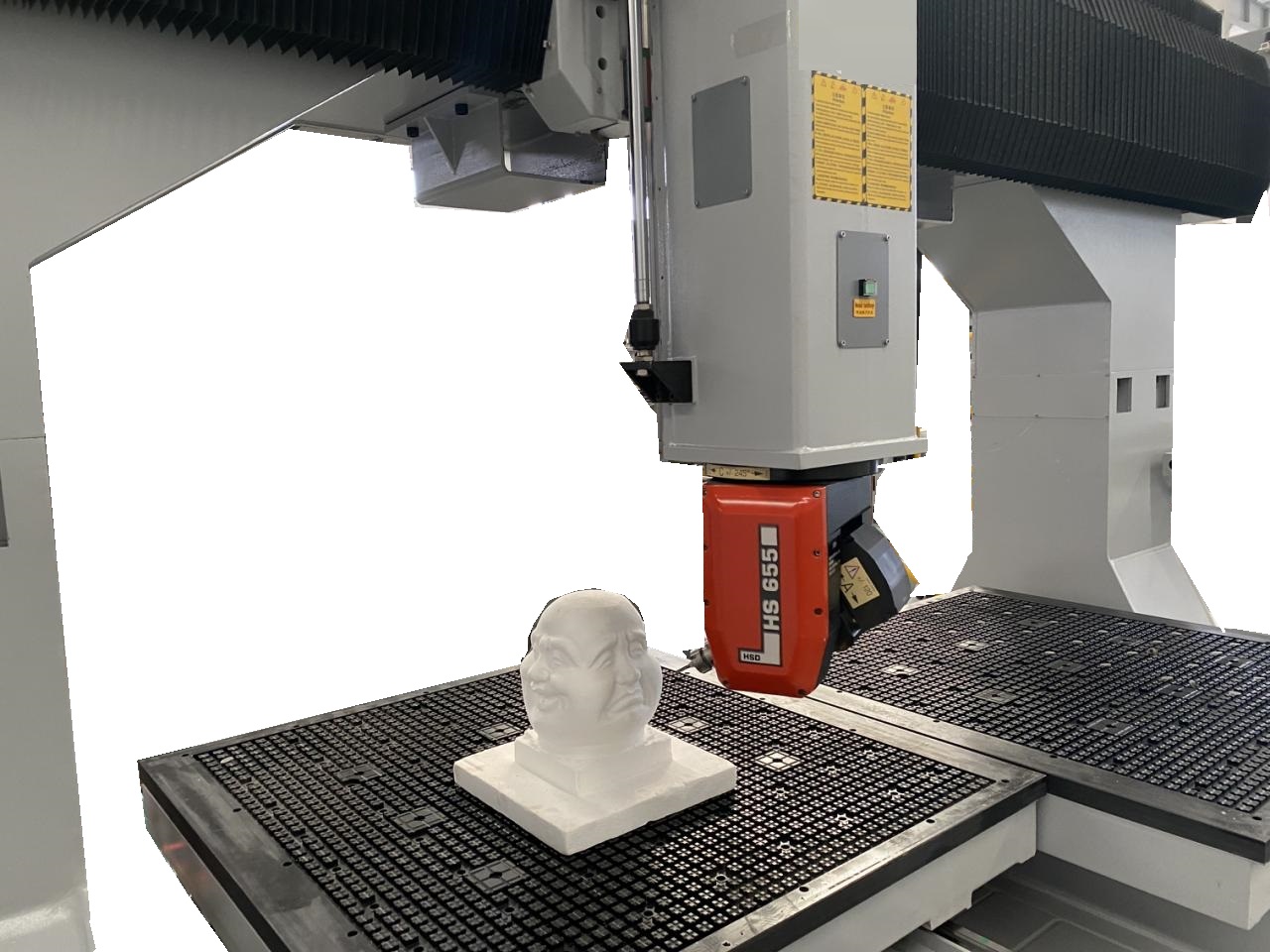

•    Vacuum table 1200mm*1200mm*2 (Twin Table)

•    Control system Taiwan Syntec 5 axis control system, Absolute value system, with RTCP

•    Driver system Taiwan Syntec 1000W servo

•    The transmission way Taiwan PMI-4040 ball screws for Y, Taiwan PMI-3210 ball screws for Z,

•    Disc type ATC with 5pcs F63 tools

•    Square rails Taiwan high quality 30 size square rails for X, Y, Z

•    Inverter 7.5 + 7.5 kw

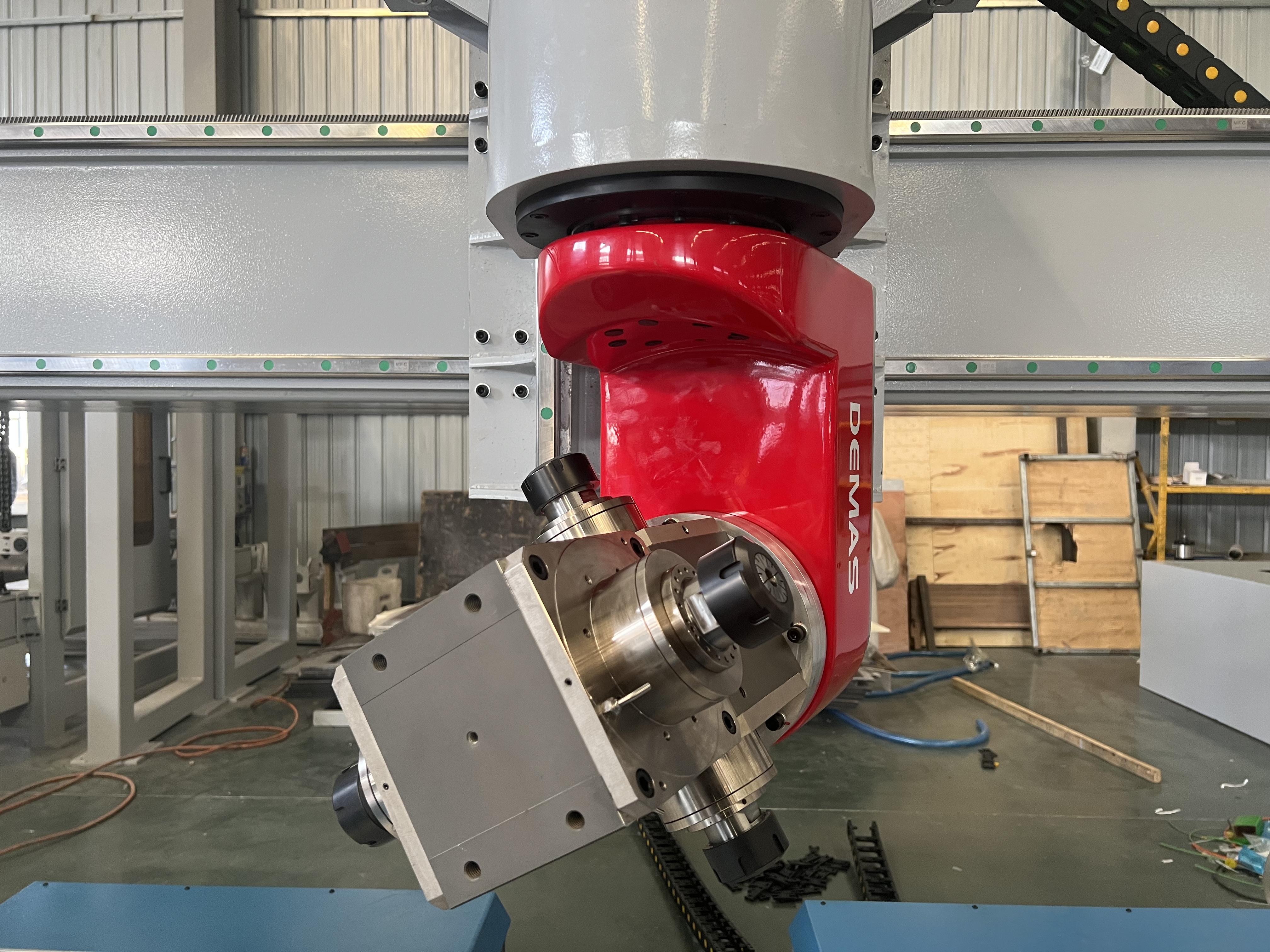

•    5 axis head DEMAS

•    Electric parts France Schneider

•    Machine speed X, Y, Z Max travel speed 30 to 50 m/min

•    Precision Working precision ±0.2mm, Repetitive positioning accuracy ±0.02mm

•    Automatic oil lubrication

•    machine weight around 5000 kgs.
