·         Rapid-12R-SU Description

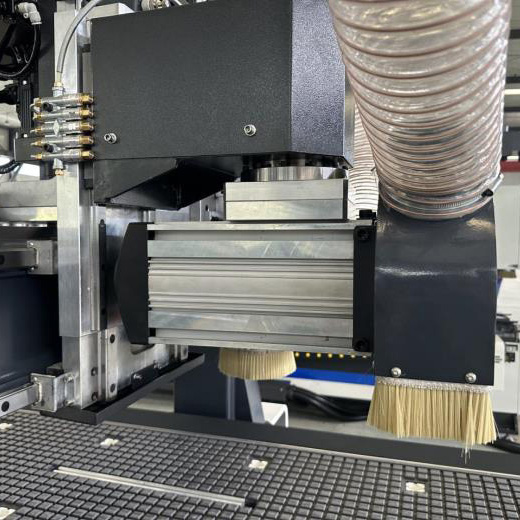

v  Universal 7.5 HP Saw Blade rotates from 0 to 135 Degrees by Servo.

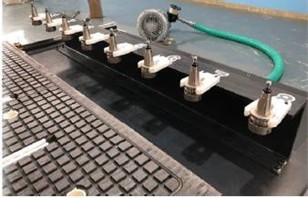

v  Automatic 12 Tools linear type auto tool changer at rear table for increased productivity.

v  All “servo motor” driving system: All axes are driven by brush-less type, high torque AC servo motors.

v  DSP CNC controller is set up to accept standard G-code programming formats along with on board conversational applications.

v  An optional CAD/CAM system can create and edit programs then be sent to machine for easy cutting. DXF files can be imported, modified, and edited from here to create G-code.

v  DNC is no longer required as the PC directly stores all part programs in a text editable file.

v  Machine designed ready for 3-D cutting usage and superior performance.

v  Moving gantry construction for space saving.

v  The rigid steel frame construction has been stressed relieved prior to finish machining to provide repeatability and accuracy.

v  Automatic frequency brake for the spindle allows rapid deceleration resulting in faster tool changes.

v  Linear guides and sliding blocks are pre-loaded with recirculation bearings to ensure maximum rapid traverse and precision.

v  The X & Y axis are equipped with a precision rack & pinion driving system. The Z axis utilizes a ball screw assembly complete with the pre-loaded and ground screw for long life and optimum accuracy

Rapid-12R-SU Product Details

General specs

1.     Machine Gantry X Axis square rails Parallel vertical accuracy 0.001” (0.03mm)

2.     Y Axis square rails Parallel vertical accuracy 0.001” (0.03mm)

3.     Z Axis ball screw Parallel vertical accuracy 0.001” (0.03mm)

4.     Machine Re-position accuracy 0.001” (0.02mm)

5.     Machine working accuracy 0.004” (0.10mm)

6.     Grating ruler travel accuracy 0.002” (0.05mm)

Technical data

1-     Control system      Syntec 60CB Control System

2-     Router Spindle             9.0kW (12hp) air cooled spindle 6,000 - 24,000 rpm

               Saw Blade                      5.5kw, 300 mm Dia. Rotates 0 to 135 Degrees

3-     Bed frame                     Heavy duty metal welding

4-     Table                                    Vacuum table 6 zones

5-     Driving system       Servomotor and driver

6-     Y axis driving system    Helical rack & pinion

7-     X & Z axis driving system     Hiwin ball screw (Taiwan)

8-     Axis square rail     Hiwin linear square rail (Taiwan)

9-     ATC                                     Rear Linear 12 tools, ISO30, ER32

10-  Inverter                  11 kW

11-   Electric parts Schneider (France)

12-  Limit switch    Omron (Japan)

13-  Electrical wiring     Siemens (Germany)

14-  Control Switch       Moeller (Germany)

15-  Lubrication     Hand control with aluminum oil pipe

16-  Machine working size   408 :51’’ (X) x 98’’ (Y) x 11-3/4’’ (Z)

                                                                          510 :63’’ (X) x 126’’ (Y) x 11-3/4’’ (Z)

                                                                          612 :75’’ (X) x 174’’ (Y) x 11-3/4’’ (Z)

17-  Machine Size (L x W x H)     408 :87’’ (X) x 122’’ (Y) x 71’’ (Z)

                                                                          510 :99’’ (X) x 149’’ (Y) x 71’’ (Z)

                                                                         612 :111’’ (X) x 197’’ (Y) x 71’’ (Z)

18-  Max Travel speed  2,350 IPM

19-  Max working speed      1,100 IPM

20-  Machine Power     3phase, 220V, 52A

21-  Machine net Weight      408: 3,960 lbs

                                                           510: 4,800 lbs

                                                           612: 6,300 lbs

22-  Tool length device Automatic

23-  Vacuum pump       Option

24-  CAD/CAM software      Option

Technical data

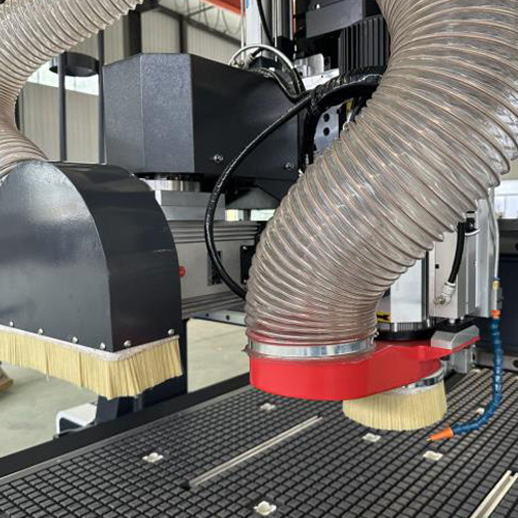

Rapid-12R-SU CNC Router
