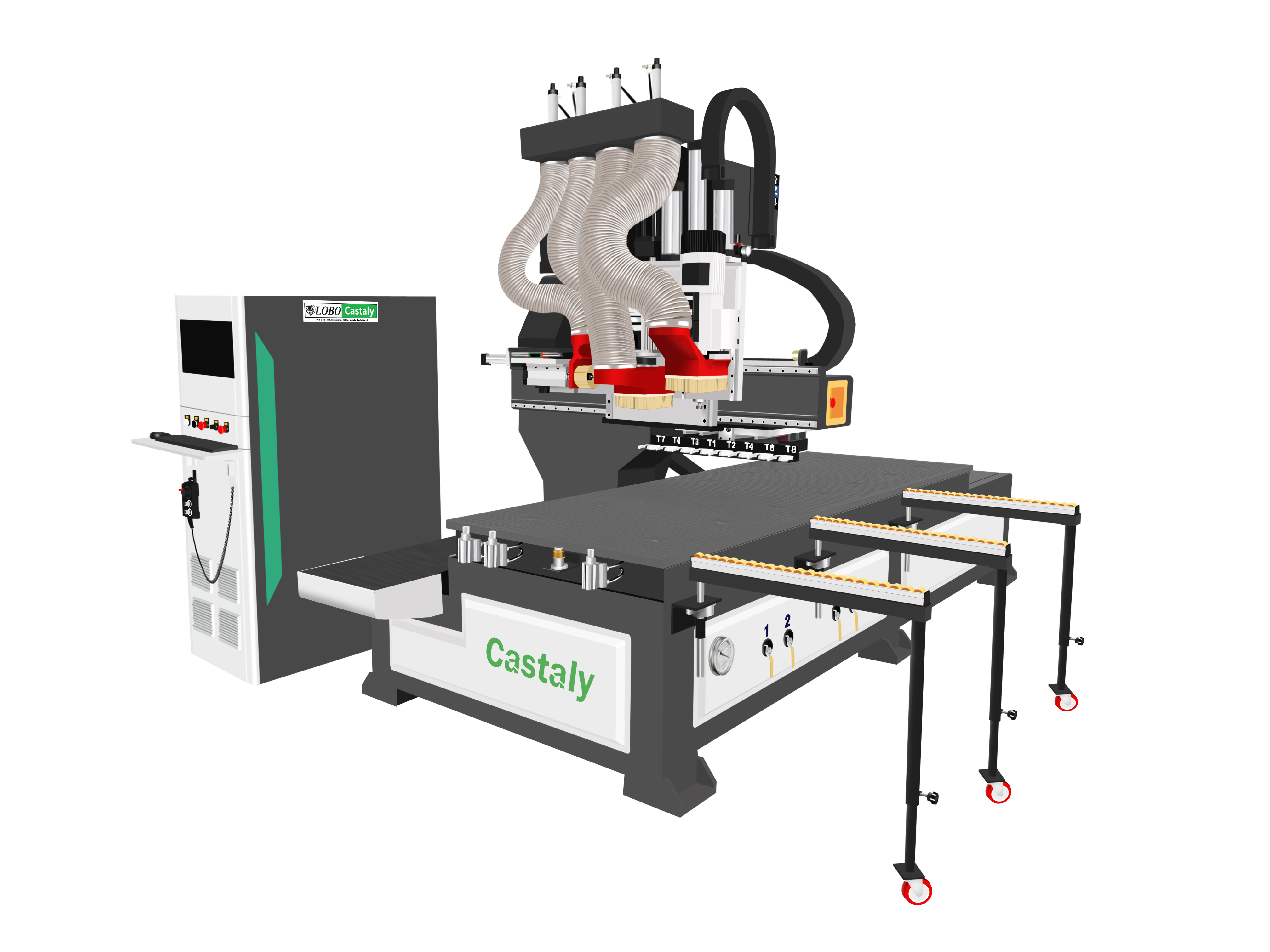

Phea Description

Distinctive design for Door Pre-Hang Processing

·         Top and Edge Project Processing

·         Top / Up Face: Door Lite Cutout, Cylindrical Lock / Dead Bolt Prep., Mortise Lock Face Prep.

·         Edge (One Side, Horizontal) / Hinge & lock edge: Lock / Dead Bolt Prep (Cylindrical), Mortise Lock, Latch Face Milling, Latch / Lock Bore Drilling, Flush Butt / Mortise Hidden Hinges Face Milling, Screw Hole Drilling, Ball / Roller Catch, Weather Strip.

·

Castaly’s Woodworking CNC Machine are perfect for:

❖  Top & One Side wood processing

❖  Cupboard doors

❖  Wooden doors

❖  Window processing

❖  Video game cabinets

❖  Door Lite Cutting

❖  Steel Door processing

Features

❖           DSP CNC controller is set up to accept standard G-code programming formats along with on board conversational applications.

❖           Optional CAD/CAM system can create and edit part programs then send to machine for easy cutting. DXF files can be imported, modified, and edited from here to create a G-code.

❖  Horizontal and vertical spindle for top and side stock processing

❖  Machine designed ready for 3-D cutting usage and superior performance.

❖  Moving gantry construction for space saving.

❖           The rigid steel frame construction has been stressed relieved prior to finish machining to provide repeatability and accuracy.

❖           Automatic frequency brake for the spindle allows rapid deceleration resulting in faster tool changes.

❖           Linear guides and sliding blocks are prismatic pre-loaded with recirculation bearings to ensure maximum rapid traverse and precision.

❖           The X & Y axis is equipped with a precision rack & pinion driving system. The Z axis utilizes a ball screw assembly complete with the pre-loaded and ground screw for long life and optimum accuracy.

Phea Product Details

General Spec

1.  Machine Gantry X Axis square rails Parallel vertical accuracy 0.001” (0.02mm)

2.  Y Axis square rails Parallel vertical accuracy 0.001” (0.02mm)

3.  Z Axis ball screw Parallel vertical accuracy 0.001” (0.02m)

4.  Machine Re-position accuracy 0.001” (0.02mm)

5.  Machine working accuracy 0.002” (0.5mm)

6.  Grating ruler travel accuracy 0.002” (0.05mm)

Specification

※ Cutting size 37-3/8” Width x 110” Length x 2-1/8” Height (Door Lock Maximum Depth 7-7/8”)

※ Custom made door vacuum table (Optional Vacuum Pump)

※ Syntec 60WA control with All-in-one PC Controller.

※ Top & One Side Edge Spindles

v  Top / Up Face: Door Lite Cutout, Cylindrical Lock / Dead Bolt Prep., Mortise Lock Face Prep.

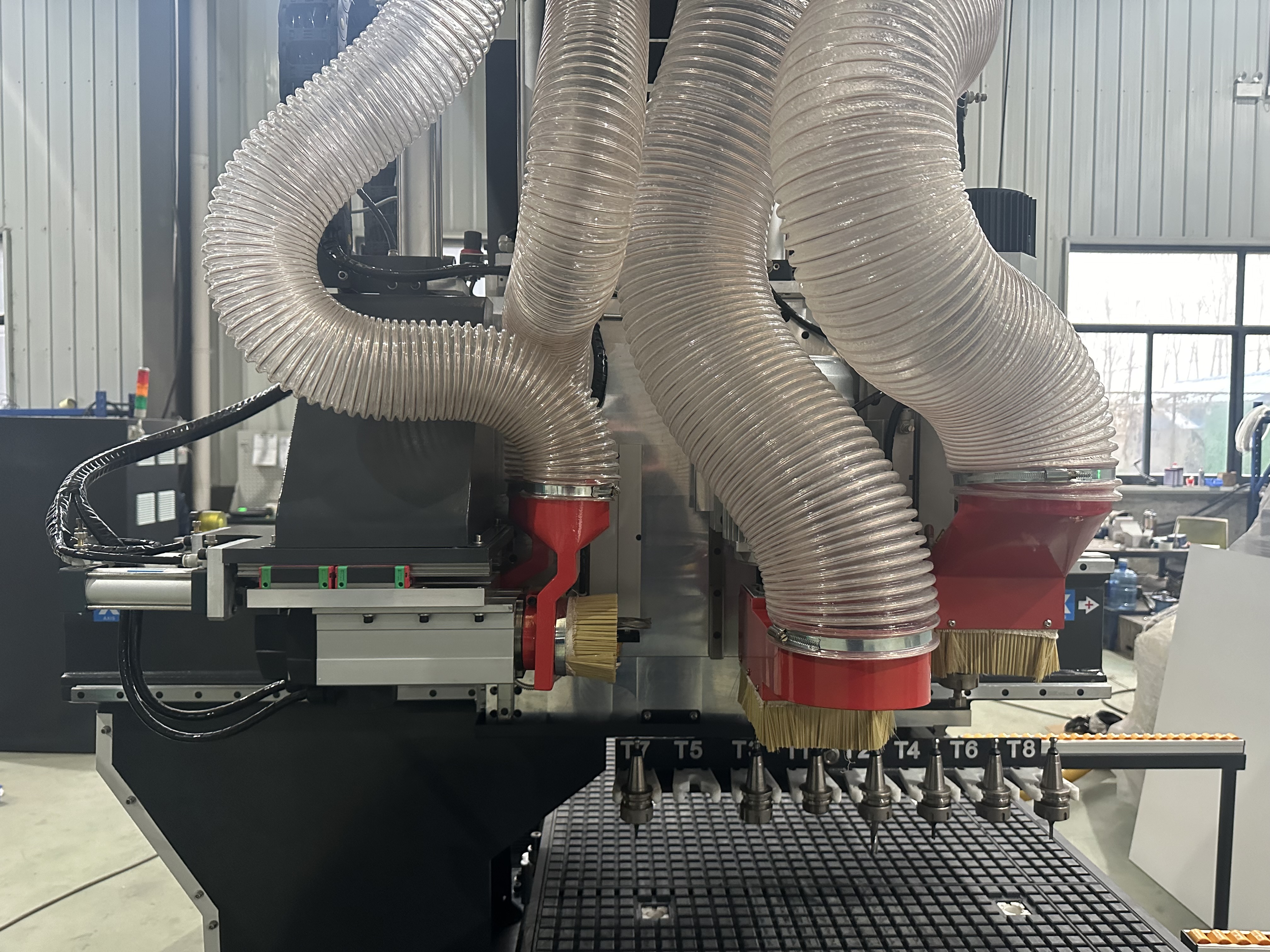

9.0 kw air-cooling, Automatic Quick-Change Spindle x 1 Unit with 8 pcs ISO30 linear ATC.

1.5 kw spindle x 1 Unit for top drilling, routing

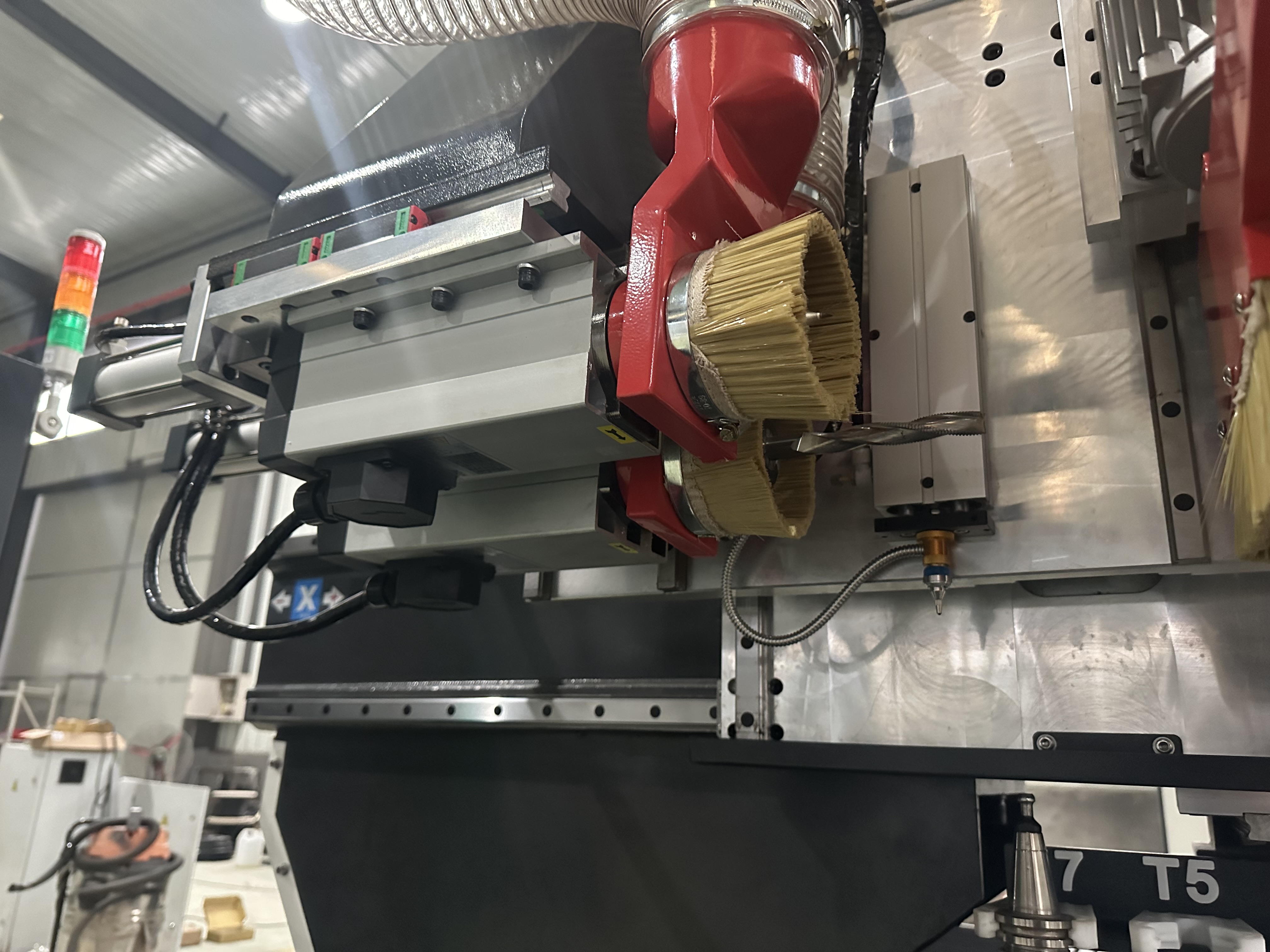

v  Hinge & lock edge: Lock / Dead Bolt Prep (Cylindrical), Mortise Lock, Latch Face Milling, Latch / Lock Bore Drilling, Flush Butt / Mortise Hidden Hinges Face Milling, Screw Hole Drilling, Ball / Roller Catch, Weather Strip

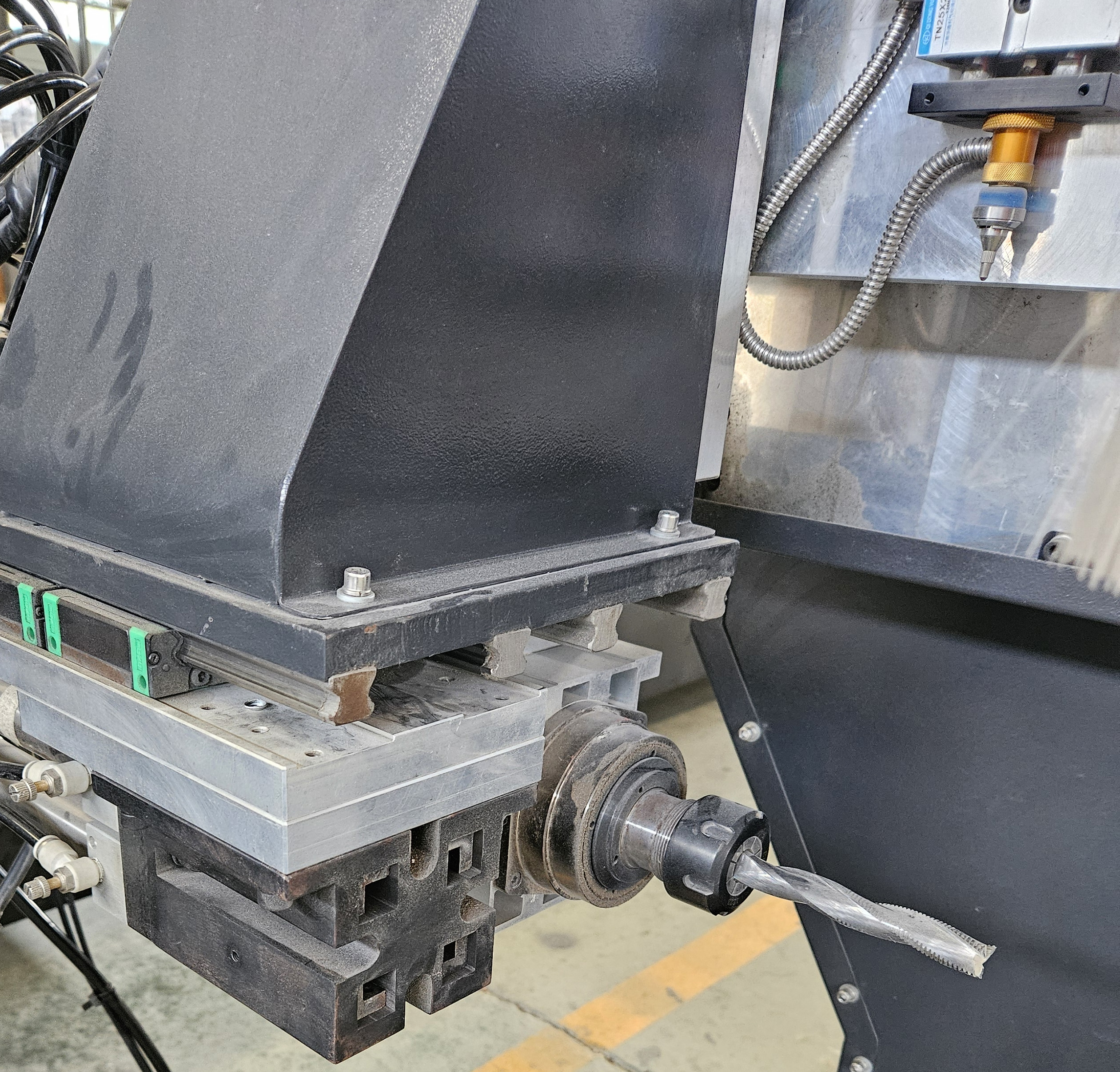

6.0 kw Side Spindle x 1 Unit

3.5 kw Side Spindle x 1 Unit

※ 1500w servo

※ Max travel speed 200 fpm (60m/min), Max working speed 50 fpm (15m/min) (According different processing material)

※ Professional PTP table with German SCHMALZ Vacuum pads 6pcs

※ 2M helical rack, 30 square rails & Ball screw

※ Automatic control with Aluminum oiling pipe Oil lubrication

※ Extend Mobile Side Roller Table to 6 ft for wider material supporting or easy loading.
