CNC Band Saw

BS-CNC

$100,900.00

Model: BS-2000CNC 78" CNC Band Saw / BS-2500CNC 98" CNC Band Saw
Prices indicated are FOB Los Angeles CA. US. Tooling, rigging, freight & sales taxes are not included
Payment terms: 50% deposit , 50% balance before ship
Warranty: 1 year
Delivery time: xx days after deposit
Training, installation, tooling & rigging are option. Customer is responsible for local regulations and utilities connecting

Advanced CNC control features powerful function and easy operation.

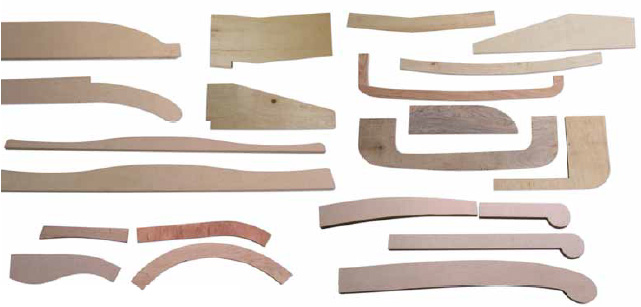

High efficiency curve cutting without need of copy template.
Band blade swiveling angle: ±90˚

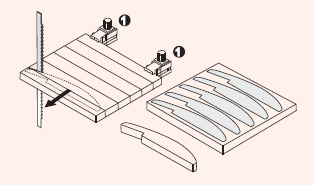

Automatic wood infeed and outfeed. Fully automatic cutting operation.

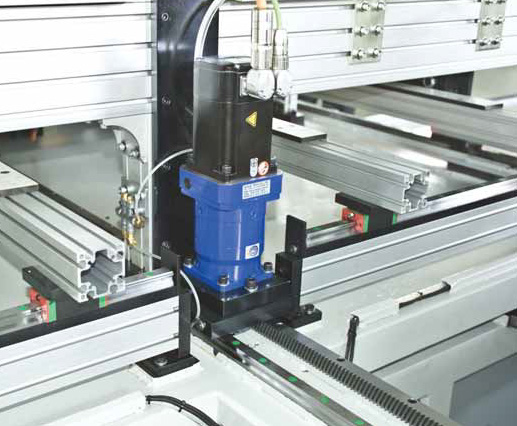

All travels are driven by servo motors combined with the use of linear guide ways.
Aluminum alloy automatic feeding mechanism features light weight, maximum durability and elegance.
Rugged machine construction.
15" fully colorful LED monitor and controller.
AXIS CARD: 4 servo axes +1 set of analog voltage output +1MPG hand-wheel axis.
4 axes control. Available to connect with various interfacing ports, such as RS-232, RS-422, RS-485 and Ethernet.
32 bit CPU. Built-in open type PLC and Macro.

Machine Size (L x W x H): BS-2000CNC: 5200*3300*2600 mm / BS-2500CNC: 6200*3300*2600 mm
Machine net weight: BS-2000CNC: 3800 kg / BS-2500CNC: 4200 kg
Cutting angle: +90°/-90°
Cutting depth: 650mm
Maximum sized of cut (L*W*H): BS-2000CNC: 2000*1200*150mm / BS-2500CNC 2500*1200*150mm
Band sawblade sizes: 5900*12.7*0.8 mm
Saw wheel diameter: 890mm
Saw wheel speed: 750 rpm
Sawblade speed: 2000MT/min
Saw wheel adjustement: 0/80mm
Spindle - X axis feed speed: 0/70 MT/min
Spindle - Y axis feed speed: 0/20 MT/min
Motor - X axis: 3.5 Kw
Motor - Y axis: 1.6 Kw
Motor - C axis: 0.7 Kw
Band sawable motor: 15HP
Dust hood outlet diameter: 100mm * 2
Working air pressure: 6 bar
