Features

•       Professional controlling system has the function of optimizing cutting path automatically, it can arrange your different cutting designs, consecutively cut all curves fast.

•       Support AUTOCAD, CORELDRAW, TAJIMA, PHO, TOSHOPS, etc, are easy to cooperate with. format graphic supported: BMP, AI, PLT, DST, DXF, etc, combined with all CAD types designs and output in time.

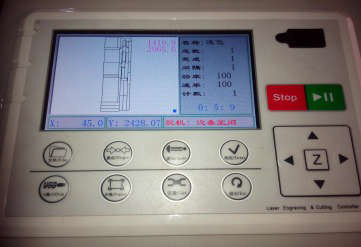

•       The machine can work without connecting to a computer and can cut fabric with a larger length than 1.0m

•       Laser tube RECI W6 150W

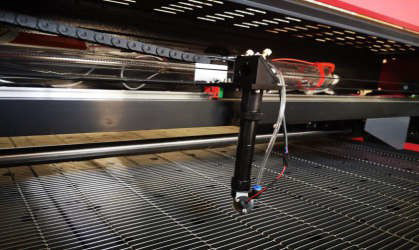

•       Laser head with red pointer

•       Constant temperature water

•       cooling system, and warning system, ensure laser to work consecutively and safety, prolong lifetime of laser tube.

•       Servo motor with driver, ensure the cutting speed can up to 500mm/s

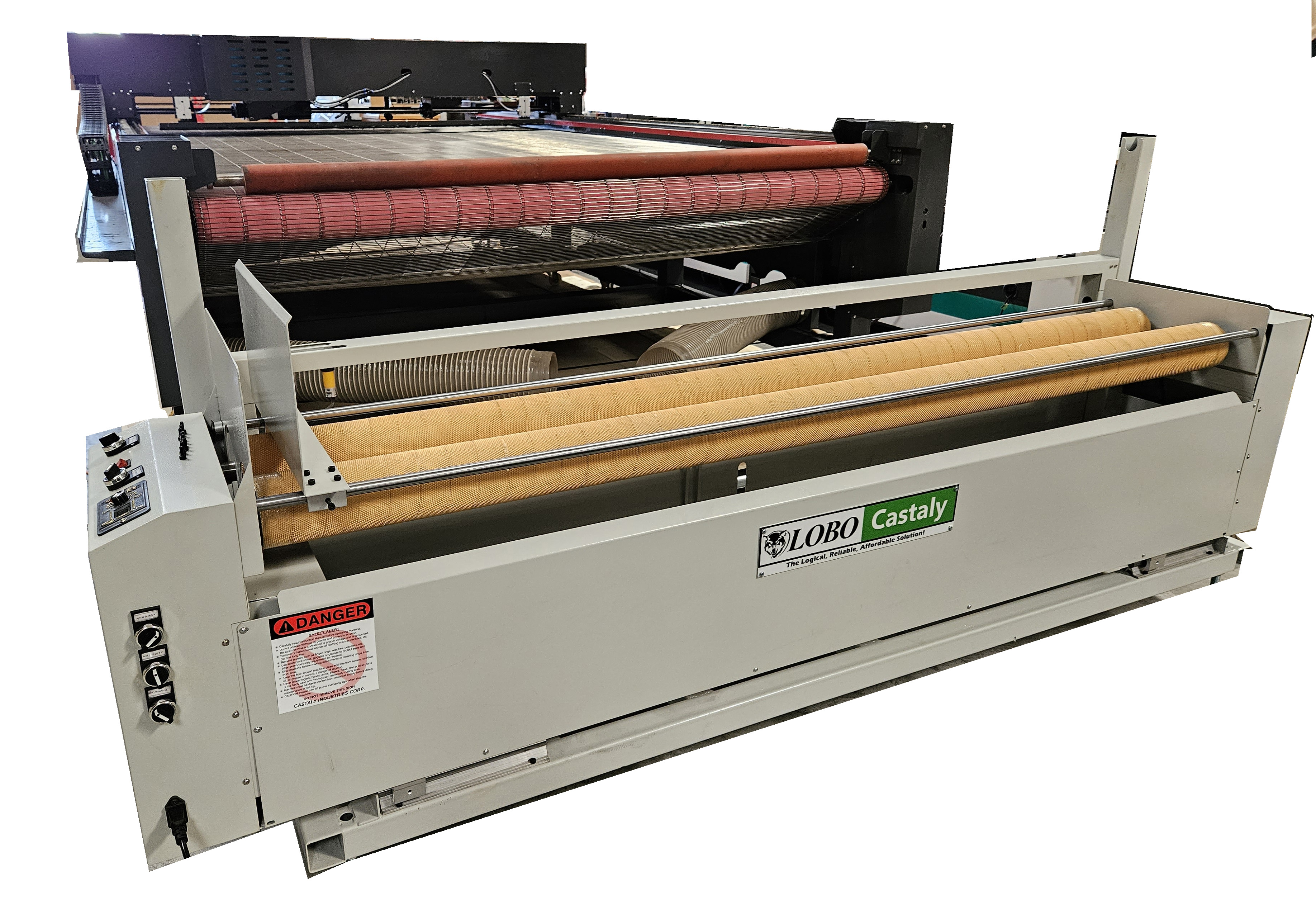

•       Auto feed nest worktable, feeding the materials automatically, with roller with Automatic correction function

•       Pneumatic press cloth device to ensure that feeding accuracy, error control within 0.2mm

•       Assistant Rollers feeding system included

Specification

•       Low cost, can completely replace the cutting and seal edge workers, the whole process,

•       only one person operation

•       Automatic feeding, automatic cutting, automatic sealing

•       Cutting accuracy of 0.2mm, fabric utilization rate of 98% or more

•       Single-layer cutting, customized shaped, only click the keyboard is ok, Perfect after- sales

•       service system, can provide overseas international service

•       Working Area 70” (X axis) × 118” (Y axis)

•       Laser Power 150w (RECI brand tube)

•       Laser type CO2 Sealed laser tube with water cooling

•       Engraving Speed 0-6000cm/min

•       Cutting Speed 0-5000cm/min

•       Rack transmission accuracy is higher, fast speed

•       Water chiller CW5200 refrigeration type industrial water chiller of 2700W cooling capacity (for cooling and protecting laser tube), has water temperature controlling.

•       Power Supply 220V/60HZ, 110V/60HZ

•       Support Format BMP, PLT, DST, DXF, AI

•       Software supported CorelDraw, PhotoShop, AutoCAD, TAJIMA

•       Driving system Servo Motor

•       Machine Net Weight 1300kgs

Fabric–Textile Laser Cutting Machine
