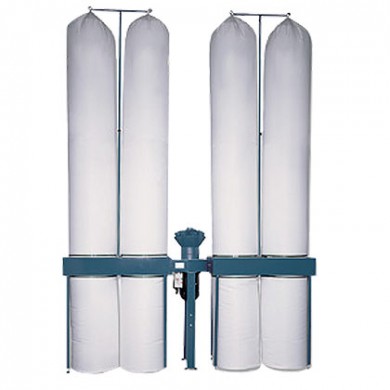

Medium dust collector

DC-8

$1,859.00

Model: DC-805 / DC-8075 / DC-8100
Prices indicated are FOB Los Angeles CA. US. Tooling, rigging, freight & sales taxes are not included
Payment terms: 50% deposit , 50% balance before ship
Warranty: 1 year
Delivery time: xx days after deposit
Training, installation, tooling & rigging are option. Customer is responsible for local regulations and utilities connecting

Radial-fin type steels impeller to get the best efficiency usage.
Two top filters and two collection bags.
Heavy-duty motor for powerful operation.
Larger size impeller and extra long top air exhaust bags enabling to collect sawdust and wood chips easier.
Standard steel spring clamps to secure the bags with the body without leaking dust.
Low sound levels keep the working area quiet.
Replacement bags or 5 micron bags for fine dust are available.
Optional connect bags for barrels are available.

Machine net weight: DC-805: 310 LBS / DC-8075: 617 LBS / DC-8100: 626 LBS
Motor: DC-805: 5 HP 3 PH / DC-8075: 7-1/2 HP 3 PH / DC-8100: 10 HP 3 PH
Fan diameter: DC-805: 14" / DC-8075 and DC-8100: 15-3/4"
Static Pressure (In H2O): DC-805: 13 / DC-8075 and DC-8100: 15
Air Capacity: DC-805: 3800 CFM / DC-8075: 5800 CFM / DC-8100: 6500 CFM
Sound Rate (db): DC-805: 70 ~ 85 / DC-8075: 75 ~ 90 / DC-8100: 80 ~ 9
Connections Diameter: DC-805: 18" x 1 and 4" x 4 / DC-8075 and DC-8100: 4" x 8 and 48
Bag Diameter: DC-805: 19-3/4" / DC-8075 and DC-8100: 23-3/4"
Top Bag Length: 59"or 118"
Bottom Bag Length: 48"
Machine Height: DC-805: 115" or 174" / DC-8075 and DC-8100: 119” or 178"
Machine gross weight: DC-805: 360 LBS / DC-8075: 770 LBS / DC-8100: 780 LBS

Medium dust collector
Download (348.28k)
