CL-620 CNC Lathe Description

Application:

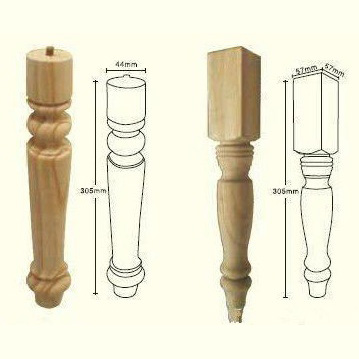

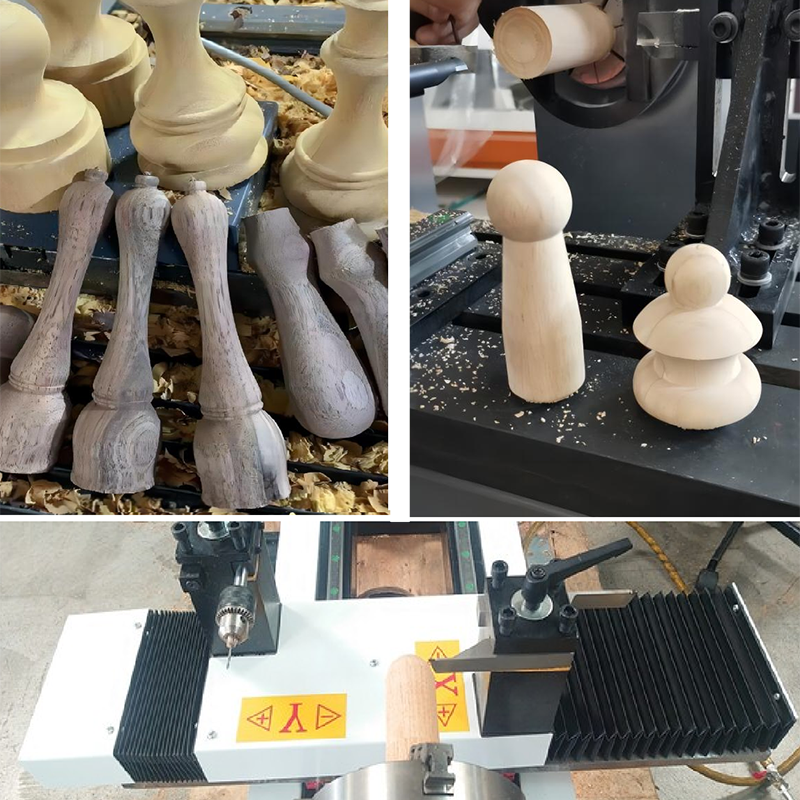

Bead, barrel, all kinds of pagoda, gourd pendant, hoist pieces, wood rhinoceroses’ horn, cup, bowl, whip, cigarette holder, eggs, ashtray, scroll painting head, wooden handle etc.

Advantage:

•       Computer numerical controlled

•       300 kinds drawing gallery special for round beads

•       Professional wood beads machine control system, easy to operate

•       Super quality wood lathe cutter special for any kind of wood, with long lifespan

•       Square guide rail and high precision ball screw transmission

•       High precision and stable working performance

Operation:

•    Input required drawing in the software

•    Set Bead diameter, select the shape, size.

•    No programming needs, easy to use.

•    You can also design your own style, drawing of contour line, also can support with BMP, JPG etc format

Cutter lifespan:

•    Adopt super hard alloy CNC cutter with long life of usage

Processing speed: Example:

•    Beads shall prevail, Rosewood automatic Hole, 38 seconds per piece, 30

•    seconds without holes.

•    Phoebe plays holes 25 seconds per piece,19 seconds without punching.

•    1/4” diameter handball, 2 minutes one piece.

•    1/4” diameter and 11cm length hand-grip gourd needs 5 minutes

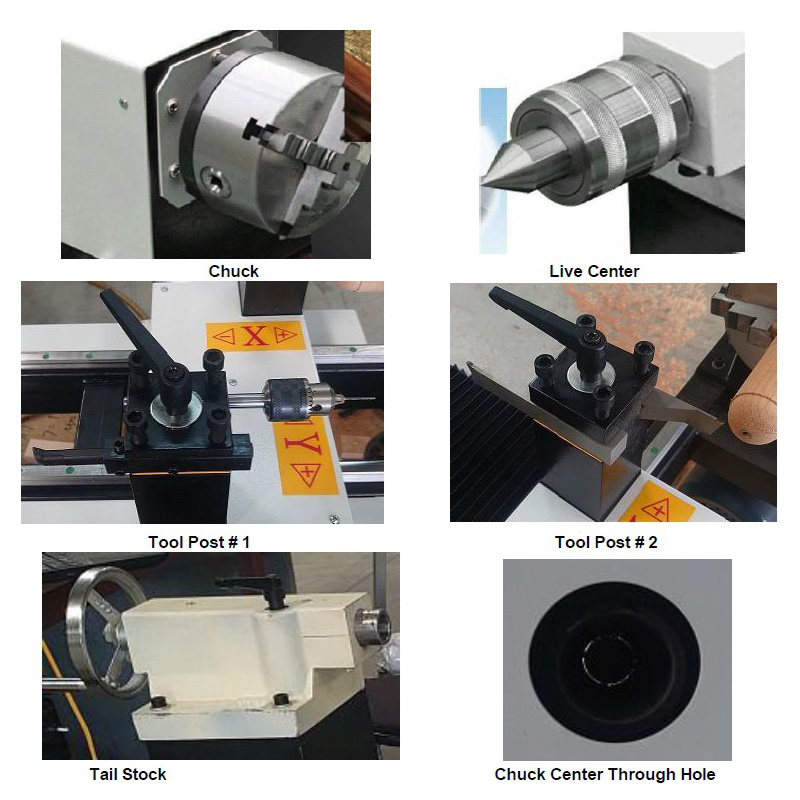

CL-620 CNC Lathe Product Details

Main configuration:

•    Working size: Max 6-1/4” Diameter x 19-1/2” Length

•    PC control system with internet connecting cable

•    Cast iron steel lathe bed

•    Three axes with German high precision Ball screw

•    High Precision Taiwan Hiwin Square Rail

•    Stepper motor and driver

•    Lubrication system for X, Y, Z axes

•    1 pc of Alloy CNC working tool

•    1 Set of maintenance tools

•    Working Voltage:220V, 60hz, Single Phase

•    Power 1.5 KW

CL-620CNC 6" x 20" CNC Turing Lathe
