Ares CNC Door Processing Machine Center (Top & 4 Edges)

ref. ARTISAN-CNC

$79,990.00

Model: ARES-410
Prices indicated are FOB Los Angeles CA. US. Tooling, rigging, freight & sales taxes are not included
Payment terms: 50% deposit , 50% balance before ship
Warranty: 1 year
Delivery time: xx days after deposit
Training, installation, tooling & rigging are option. Customer is responsible for local regulations and utilities connecting

Machine Gantry X Axis square rails Parallel vertical accuracy 0.001" (0.03mm)
Y Axis square rails Parallel vertical accuracy 0.001" (0.03mm)
Z Axis ball screw Parallel vertical accuracy 0.001" (0.03mm)
Machine Re-position accuracy 0.001" (0.02mm)
Machine working accuracy 0.002" (0.05mm)
Grating ruler travel accuracy 0.002" (0.05mm)

Working size 51" Width x 98" Length x 7-7/8" Height (Door Lock Maximum Depth 4-3/4")
Custom made door vacuum table (Optional Vacuum Pump)
Syntec 60WA control with All in one PC Controller
9.0kw air cooling Spindle with 4 pcs ISO30 tools linear ATC for Top Side Milling, Drilling, Lock, Bore Processing

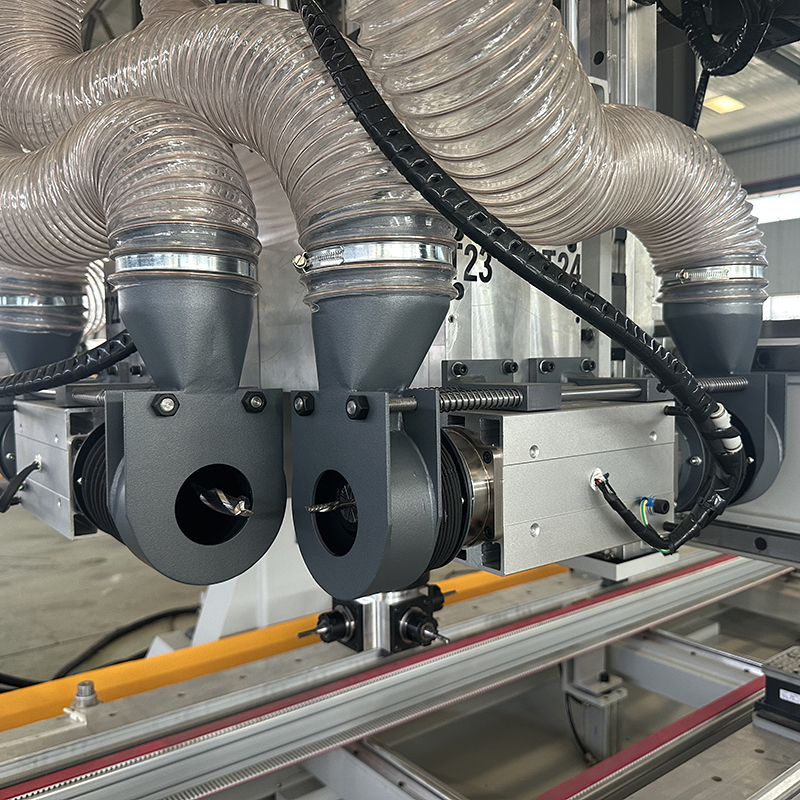

6.0kw double Side milling Spindle at X direction for X Axis Two Side, Milling, Drilling, Ball, Catch, Split Line Processing
6.0kw double milling spindle at Y direction, Two Side, Milling, Drilling, Hinge, Latch Hole, Face, Dead Ball Processing
2.2kw 4 Side Milling Spindle for All the 4 Side, Small Holes, or Screw Hole Drilling process
1500w servo
Max travel speed 200 fpm (60m/min), Max working speed 50 fpm (15m/min) (According different processing material)
Professional PTP table with German SCHMALZ Vacuum pads 6pcs
2M helical rack, 30 square rails & Ball screw
Automatic control with Aluminum oil pipe Oil lubrication

Control system: Syntec
Tool change: Automatic 4 pcs ISO30 Tools, Quick Linear Rear Table Edge Tool Change
Spindle: 12 HP (9 KW) air cooling, Quick Change, speed 6,000-24,000 rpm, one 8 HP (6kW) double horizontal spindle and one 3HP (2.2Kw) four side horizontal spindle
Lathe frame: Heavy duty metal welding with quenching process
Table: Custom made door vacuum table
Driving system: AC servo drive & motor
X, Y Axis structure: Taiwan TBI or HIWIN Helical rack and pinion drive
Z Axis Structure: Taiwan TBI or HIWIN ball screw
X Y Z Axis Square rails: Taiwan HIWIN brand linear square rails
Inverter: 11 KW Inverter
Electric parts: France Schneider
Limited switch: Japan Omron
Machine Cable: German Siemens OEM factory cable
Oil lubrication: Automatic control with filter
Machine working size: X*51”, Y*98”, Z*7-7/8”
Machine Size (L x W x H): 106” x 181” x 101”
Machine Max. travel speed: 2,400 IPM
Machine Max. working speed: 600 IPM
Machine power: 3 PH ,220 V ,
Machine net weight: 3,750 lbs
Support Dictate Format: *.plt,*.dst,*.dxf,*.bmp,*.dwg,*uoo
Control switch: German Moeller
Tool Length Device: Automatic
Pneumatic Table Position Cylinder: Standard 4 pcs
Vacuum Pump: Option
CAD / CAM Drawing Software: Option
